Max. capacity:  8378 lb
Max. lifting height:  22 ft 8 in
Transmission type:  Torque converter
Engine power (kW):  95 kW

  • Get a Quote Payment Calculator

    • Get information on the MLT 738-130 PS+ (S1)

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

MLT 738-130 PS+ (S1) Specs & Compare
Download PDF
Capacities
Max. capacity8378 lb
Max. lifting height22 ft 8 in
Maximum outreach13 ft 1 in
Reach at max. height3 ft 3 in
Breakout force with bucket6095 daN
Weight and dimensions
Unladen weight (with forks)16557 lb
Ground clearance1 ft 4 in
Wheelbase9 ft 3 in
Overall length to carriage (with hitch)16 ft 6 in
Front overhang4 ft 2 in
Overall width7 ft 10 in
Overall cab width3 ft 1 in
Overall height7 ft 10 in
Tilt-down angle133 °
Tilt-up angle14 °
External turning radius (over tyres)12 ft 11 in
Standard tiresAlliance - A580 - 460/70 R24 159A8
Drive wheels (front / rear)2 / 2
Steering wheels (front / rear)2 / 2
Performances
Lifting7.30 s
Lowering5.50 s
Extension6.30 s
Retraction5.70 s
Crowd3.60 s
Dump3.10 s
Engine
Engine brandDeutz
Engine normStage V
Engine modelTCD 3.6 L4
Number of cylinders - Capacity of cylinders4 - 221 in³
Engine power (Hp / kW)129 Hp / 95 kW
Max. torque / Engine rotation369 ft/lbs @1600 rpm
Drawbar pull (Laden)8000 daN
Reversible fanStandard
Engine cooling system4 radiators (water + intercooler + hydraulic oil + transmission oil)
HVO validated (according to EN 15940 standard)Yes
Transmission
Transmission typeTorque converter
GearboxPowershift
Number of gears (forward / reverse)6 / 3
Max. travel speed (may vary according to applicable regulations)25 mph
Differential lockLimited slip differential on front axle
Parking brakeAutomatic negative parking brake
Service brakeOil-immersed multi-discs braking on front & rear axles
Hydraulics
Hydraulic pump typeVariable displacement pump
Hydraulic flow - Pressure40 US gpm - 3916 PSI
Flow sharing distributorStandard
Tank capacities
Hydraulic tank capacity36 US gal
Fuel tank32 US gal
Diesel Exhaust fluid (AdBlue® type)3 US gal
Noise and vibration
Noise at driving position (LpA) tested following NF EN 12053 norm72 dB
Vibration on hands/arms< 8 ft/s²
Miscellaneous
Tractor homologationTractor homologation
Cab certificationCabin ROPS - FOPS level 2
ControlsJSM
MLT 738-130 PS+ (S1) Features & Benefits

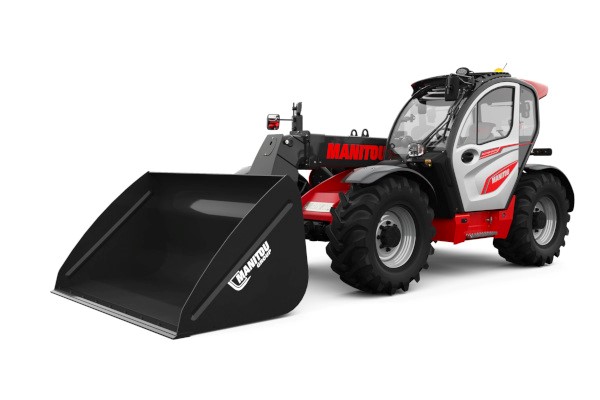

Dedicated to the agricultural market, the MLT 738-130 PS+ telescopic handler has a lift height of 6.91 m and a capacity of 3,800 kg. This model is very versatile and can handle many types of loads (paletts, bales, grain, forage...).

Comfort first and foremost: this model features a high-visibility grille, easy access to the driver's cab and a range of standard equipment (automatic parking brake, large screen, JSM joystick, etc.).

Performance first: with its 129 hp engine, Powershift Plus transmission and 150 l/min hydraulic flow, the MLT 738-130 PS+ saves you time in your daily work. Its all-terrain capabilities, radiator cleaning system and air pre-filter make it an ideal solution for agricultural environments.

Profitability first and foremost: easy access to the machine's main components, a connected machine, optimized fuel consumption (Stop & Start function)... every effort has been made to actively improve your farm's profitability.
