Max. capacity:  11020 lb
Max. lifting height:  24 ft 11 in
Transmission type:  Continuously variable transmission
Engine power (kW):  105 kW

  • Get a Quote Payment Calculator

    • Get information on the MLT 850-145 V+

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

MLT 850-145 V+ Specs & Compare
Download PDF
Capacities
Max. capacity11020 lb
Max. lifting height24 ft 11 in
Maximum outreach14 ft 11 in
Reach at max. height2 ft 11 in
Breakout force with bucket8670 daN
Weight and dimensions
Unladen weight (with forks)23766 lb
Ground clearance1 ft 6 in
Wheelbase9 ft 8 in
Overall length to carriage (with hitch)18 ft 3 in
Overall length to carriage (without hitch)18 ft 2 in
Front overhang5 ft 1 in
Overall width8 ft 2 in
Overall cab width3 ft 3 in
Overall height8 ft 6 in
Tilt-down angle132 °
Tilt-up angle12 °
External turning radius (over tyres)13 ft 3 in
Standard tiresAlliance - A580 - 500/70 R24 164A8
Drive wheels (front / rear)2 / 2
Steering wheels (front / rear)2 / 2
Performances
Lifting6.60 s
Lowering4.90 s
Extension6.30 s
Retraction5.70 s
Crowd4.20 s
Dump3.10 s
Engine
Engine brandYanmar
Engine normStage V / Tier 4 Final
Max. fuel sulphur content1000 ppm
Engine model4TN107FHT-5SMUF
Number of cylinders - Capacity of cylinders4 - 279 in³
Engine power (Hp / kW)141 Hp / 105 kW
Max. torque / Engine rotation444 ft/lbs @1500 rpm
Drawbar pull (Laden)9160 daN
Reversible fanStandard
Engine cooling system3 radiators water + intercooler + transmission oil
Transmission
Transmission typeContinuously variable transmission
GearboxM-Vario Plus
Max. travel speed (may vary according to applicable regulations)25 mph
Differential lockLimited slip differential on front and rear axles
Parking brakeAutomatic negative parking brake
Service brakeOil-immersed multi-discs braking on front & rear axles
Hydraulics
Hydraulic pump typeVariable displacement pump
Hydraulic flow - Pressure53 US gpm - 3916 PSI
Flow sharing distributorStandard
Tank capacities
Hydraulic tank capacity37 US gal
Fuel tank38 US gal
Diesel Exhaust fluid (AdBlue® type)6 US gal
Consumption calculated according to EN 16796-4 standard2 US gph
Noise and vibration
Noise at driving position (LpA) tested following NF EN 12053 norm69 dB
Noise to environment (LwA)105 dB
Vibration on hands/arms< 8 ft/s²
Miscellaneous
Tractor homologationTractor homologation
Cab certificationCabin ROPS - FOPS level 2
ControlsJSM
MLT 850-145 V+ Features & Benefits

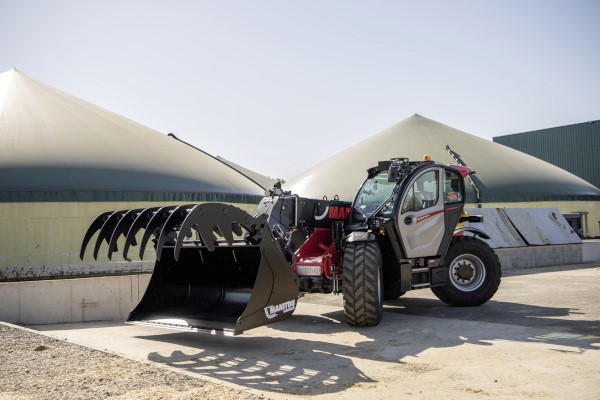

The MLT/MLT-X 850-145 V+ is designed to meet the needs of large farms, ETAs, cooperatives, agro-industry as well as the recycling and environmental sector.

With a capacity of 5 tons and maximum lifting height of 24'11" (7.60 m), this machine can handle high capacity attachments and a very high hydraulic working speed. The MLT 850 has the best work rate in its category: +18% compared to the competition, that is to say 2 more loaded semi-trailers per hour.

Maximum productivity: the MLT 850 offers more than 600 Nm of torque, with a pulling force of more than 9160 daN (+20% compared to the competition). The high speed of movement provided by the 53 gpm (200 l/min) LSU pump is complemented by a bucket breakout force of over 8670 daN (+32% compared to the competition).

Effortless comfort: As with the entire NewAg XL range, the MLT 850 has the quietest cab on the market with only 69 dBA to reduce your fatigue. The cabin access has been optimized with two Easy-step steps combined with under-door lighting make getting in and out even safer, day or night.

Unmatched cost effectiveness: the MLT 850 is coupled with a range of services offered and adapted to your use and boasts a 4% reduction in maintenance costs as well as the lowest total cost of ownership in its category with 8% less than the competition. In addition, the energy efficiency of this machine allows you to consume 20% less fuel than the competition.
