Static tipping load with forks (straight):  4980 lb
Static tipping load with bucket (straight):  6409 lb
Max. height of bucket pivot point:  10 ft 11 in
Engine power (kW):  48.50 kW

  • Get a Quote Payment Calculator

    • Get information on the MLA 6-65 H-Z

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

MLA 6-65 H-Z Specs & Compare
Download PDF
Capacities
Static tipping load with bucket (straight)6409 lb
Static tipping load with bucket (full turn)4916 lb
Static tipping load with forks (straight)4980 lb
Static tipping load with forks (full turn)3920 lb
Max. height of bucket pivot point10 ft 11 in
Max. lifting height (below forks)10 ft 3 in
Breakout force with bucket5743 daN
Weight and dimensions
Unladen weight (with forks) with 4-post canopy9149 lb
Unladen weight (with forks)9500 lb
Wheelbase6ft 7 in
Overall width of 4 posts canopy4 ft 2 in
Overall cab width4 ft 2 in
Overall height with FOPS removed and ROPS folded6 ft 6 in
Overall height with 4 posts canopy8 ft 1 in
Overall height with cab8 ft 1 in
Tilt-up angle45 °
Tilt-down angle45 °
Articulation angle45 °
Overall width less bucket5 ft 5 in
Overall length - Less Bucket14 ft
Ground clearance1 ft 3 in
Engine
Engine brandYanmar
Engine model4TNV98CT_PGWL1
Engine normStage V
Number of cylinders / Capacity of cylinders4 - 201 in³
Engine power (Hp / kW)65 Hp / 45.50 kW
Max. torque / Engine rotation207 ft/lbs / 1560 rpm
Engine cooling system2 radiators water + hydraulic oil
Transmission
Transmission typeHydrostatic
Number of gears (forward / reverse)2 / 2
Max. travel speed (may vary according to applicable regulations)19 mph
Travel speed (laden)12 mph
Differential lockFront and rear locking of the machine
Parking brakeManual
Service brakeHydraulic drum brake on front axle, acting on all 4 wheels
Hydraulics
Hydraulic pump typeGear pump
Hydraulic flow - Pressure18 US gpm / 2901 PSI
High-Flow Option (l/min)26 US gpm
Drive hydraulic system pressure6092 PSI
Tank capacities
Hydraulic oil20 US gal
Fuel tank25 US gal
Noise and vibration
Vibration on hands/arms8 ft/s²
Miscellaneous
Cab certificationROPS - FOPS cab (level 1)
MLA 6-65 H-Z Features & Benefits

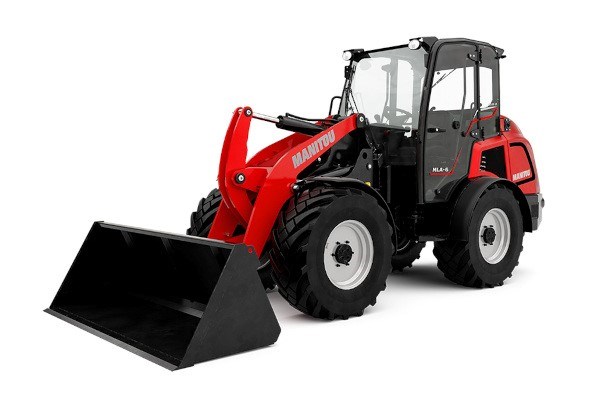

The MLA 6-65 is a wheel loader that combines reduced dimensions with true power. The hydrostatic transmission gives you performance on every terrain without compromising the smoothness for working in confined spaces. The lift arm has a Z-kinematic for higher break-out forces and provides additional dump height and reach. The machine is designed with the comfort for the operator in mind. All controls are centralized around the joystick and on the floating armrest. With full 360° visibility, an adjustable workspace and ergonomic controls, the machine will host the operator for many hours per day.
