Static tipping load with forks (straight): 6043 lb
Static tipping load with bucket (straight):  7447 lb
Max. height of bucket pivot point: 11 ft 5 in
Engine power (kW):  55.40 kW

  • Get a Quote Payment Calculator

    • Get information on the MLA 7-75 H-Z

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

MLA 7-75 H-Z Specs & Compare
Download PDF
Capacities
Static tipping load with bucket (straight)7447 lb
Static tipping load with bucket (full turn)5778 lb
Static tipping load with forks (straight)6043 lb
Static tipping load with forks (full turn)4793 lb
Max. height of bucket pivot point11 ft 5 in
Max. lifting height (below forks)10 ft 9 in
Breakout force with bucket5906 daN
Weight and dimensions
Unladen weight (with forks) with 4-post canopy10540 lb
Unladen weight (with forks)10919 lb
Wheelbase6 ft 9 in
Overall width of 4 posts canopy4 ft 2 in
Overall cab width4 ft 2 in
Overall height with FOPS removed and ROPS folded6 ft 6 in
Overall height with 4 posts canopy8 ft 2 in
Overall height with cab8 ft 2 in
Tilt-up angle45 °
Tilt-down angle45 °
Articulation angle45 °
Overall width less bucket5 ft 9 in
Overall length - Less Bucket14 ft 7 in
Ground clearance1 ft
Engine
Engine brandDeutz
Engine modelTD3.6 L4
Engine normStage IIIB
Number of cylinders / Capacity of cylinders4 - 220 in³
Engine power (Hp / kW)74.30 Hp / 55.40 kW
Max. torque / Engine rotation243 ft/lbs / 1600 rpm
Engine cooling system2 radiators water + hydraulic oil
Transmission
Transmission typeHydrostatic
Number of gears (forward / reverse)2 / 2
Max. travel speed (may vary according to applicable regulations)19 mph
Travel speed (laden)12 mph
Differential lockFront and rear locking of the machine
Parking brakeManual
Service brakeHydraulic drum brake on front axle, acting on all 4 wheels
Hydraulics
Hydraulic pump typeGear pump
Hydraulic flow - Pressure18 US gpm / 2901 PSI
High-Flow Option (l/min)29 US gpm
Drive hydraulic system pressure5511 PSI
Tank capacities
Hydraulic oil20 US gal
Fuel tank27 US gal
Noise and vibration
Vibration on hands/arms< 8 ft/s²
Miscellaneous
Cab certificationROPS - FOPS cab (level 1)
MLA 7-75 H-Z Features & Benefits

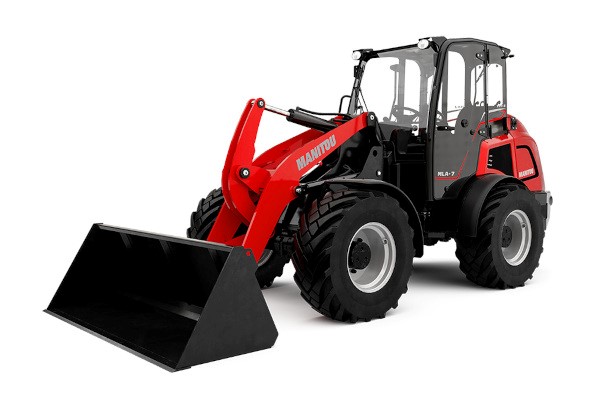

The Manitou MLA 7-75 is the largest wheel loader in the range with a standard lift arm. Similar to the smaller units, this machine did not make compromises in terms of comfort and performance! The hydrostatic transmission is smooth at low speed and very powerful in demanding circumstances. With gearshift and 100% diff lock controls on the joystick, the operator is always in control. With optional 30 kph and lift arm suspension, the MLA 7-75 will bring you in full comfort from one jobsite to another. The Z-bar loader linkage gives you the extra break-out force, return to dig and parallel guidance. Whether in agricultural or in construction environment, this wheel loader performs at its best in tough conditions and never lets you down.
