Static tipping load with forks (straight):  6023 lb
Static tipping load with bucket (straight):  7793 lb
Max. height of bucket pivot point:  16 ft 6 in
Engine power (kW):  55.40 kW

  • Get a Quote Payment Calculator

    • Get information on the MLA-T 516-75 H

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

MLA-T 516-75 H Specs & Compare
Download PDF
Capacities
Static tipping load with bucket (straight)7793 lb
Static tipping load with forks (straight)6023 lb
Static tipping load with forks (full turn)4409 lb
Max. payload with forks as per EN 474-3 (80%)3527 lb
Max. height of bucket pivot point16 ft 6 in
Max. lifting height (below forks)15 ft 11 in
Maximum outreach10 ft 10 in
Weight and dimensions
Unladen weight (with forks) with 4-post canopy12220 lb
Overall width of 4 posts canopy4 ft 2 in
Overall cab width4 ft 2 in
Overall height with 4 posts canopy8 ft 2 in
Articulation angle44 °
Overall width less bucket5 ft 9 in
Overall length - Less Bucket16 ft 3 in
Ground clearance1 ft
Engine
Engine brandDeutz
Engine modelTD 3.6 L4
Engine normStage IIIB, Tier 4
Number of cylinders / Capacity of cylinders4 - 220 in³
Engine power (Hp / kW)74.30 Hp / 55.40 kW
Max. torque / Engine rotation243 ft/lbs / 1600 rpm
Engine cooling system2 radiators water + hydraulic oil
Transmission
Transmission typeHydrostatic
Number of gears (forward / reverse)2 / 2
Max. travel speed (may vary according to applicable regulations)19 mph
Travel speed (laden)12 mph
Differential lockFront and rear locking of the machine
Parking brakeManual
Service brakeHydraulic drum brake on front axle, acting on all 4 wheels
Hydraulics
Hydraulic pump typeGear pump
Hydraulic flow - Pressure18 US gpm / 2901 PSI
High-Flow Option (l/min)29 US gpm
Drive hydraulic system pressure5511 PSI
Tank capacities
Hydraulic oil20 US gal
Fuel tank27 US gal
Noise and vibration
Vibration on hands/arms< 8 ft/s²
Miscellaneous
Cab certificationROPS - FOPS cab (level 1)
MLA-T 516-75 H Features & Benefits

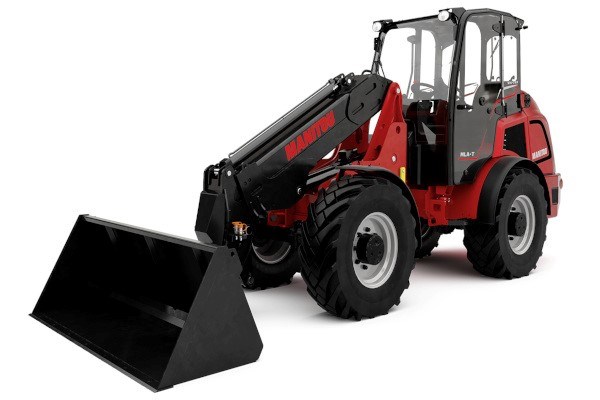

The Manitou MLA-T 516-75 smaller telescopic wheel loader, combines its strength within the telescopic boom and the agility of an articulated chassis. This gives the operator the maneuverability that is often requested when working inside buildings together with the extra reach that has become a bullet point in modern farms. This machine shares similar features to the MLA 7-75, where comfort and performance are key. The hydrostatic transmission gives power and smoothness when requested. True 360° visibility will allow the operator to gain productivity in safe conditions. The operator station is fully adjustable and exceeds all modern levels of comfort.  The MLA-T 516-75 H has flow sharing hydraulics with combined movements and total control for the operator as a result.
