Overall Operating Height - Fully Raised:  144 in
Dump reach - Full height:  26 in
Overall length with bucket:  118 in
Overall width less bucket:  51 in

  • Get a Quote Payment Calculator

    • Get information on the 1050RT

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

1050RT Specs & Compare
Download PDF
Capacities
Operating Weight4720 lb
Unladen weight4251 lb
Operating Capacity at 35% Tipping Load1049 lb
Operating Capacity At 50% Tipping Load1499 lb
Tipping capacity3000 lb
Weight and dimensions
Overall Operating Height - Fully Raised144 in
Height to Hinge Pin - Fully Raised109 in
Dump reach - Full height26 in
Dump angle at full height38 °
Dump Height - Fully Raised84 in
Maximum Rollback Angle - Fully Raised102 °
Overall Height to top of ROPS71 in
Overall length with bucket118 in
Overall Length without Bucket89 in
Specified Height58 in
Reach at Specified Height39 in
Dump angle at specified height72 °
Carry Position5 in
Maximum Rollback Angle at Carry Position32 °
Digging Position0 in
Angle of Departure with STD Counterweight35 °
Ground clearance8 in
Track gauge41 in
Track Shoe Width10 in
Crawler base51 in
Overall width less bucket51 in
Bucket Width54 in
Clearance Radius - Front with Bucket73 in
Angle of Approach90 °
Grouser Height0.98 in
Track Type / Track Rollers / Roller TypeRubber / 4 / Steel
Performances
Ground Speed - Single Speed6 mph
Drawbar Pull/Tractive Effort4400 lb
Bucket Breakout - Tilt Cylinder2967 lb
Bucket Breakout - Lift Cylinder3034 lb
Engine
Engine brandYanmar
Engine model3TNV88C-KMSV
Motor TypeRadial Piston
Engine power (Hp)34.20 Hp
Engine power (kW)23.70 kW
Max. torque81 ft/lbs
Battery voltage12 V
Cold Cranking Amps at Temperature (CCA)800 A
Alternator - Voltage / Ampere12 V / 55 A
Hydraulics
Standard flow - Auxiliary hydraulics15 US gpm
Tank capacities
Oil Pan Capacity2 US gal
Hydraulic tank capacity8 US gal
Fuel tank10 US gal
Liquid cooling tank volume2 US gal
Displacement / Number of cylinders0.43 US gal / 3
Noise and vibration
Noise to environment (LwA)101 dB
Noise at driving position (LpA)85.80 dB
Miscellaneous
Ground Pressure5 PSI
1050RT Features & Benefits

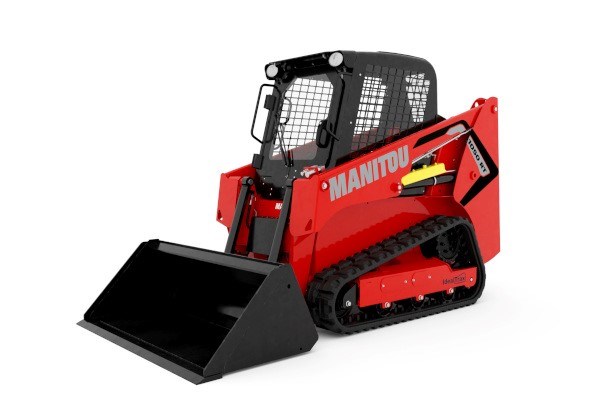

Discover the performance of the ultra-compact 1050 RT track loader. Equipped with IdealTrax, this machine allows you to work effectively on all types of soils including; rough terrain, muddy and uneven ground. Take advantage of its compactness and its power to achieve all of your operations: excavation under the ground level, leveling, excavation, loading / unloading, transportation of materials, positioning loads at height .... Add more versatility with the ability to change out attachments within minutes and get a solution for all your business projects!
