Overall Operating Height - Fully Raised:  144 in
Dump reach - Full height:  23 in
Overall length with bucket: 121 in
Overall width less bucket:  57 in

  • Get a Quote Payment Calculator

    • Get information on the 1350RT

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

1350RT Specs & Compare
Download PDF
Capacities
Operating Weight6510 lb
Unladen weight6510 lb
Operating Capacity at 35% Tipping Load1349 lb
Operating Capacity At 50% Tipping Load1929 lb
Tipping capacity3858 lb
Weight and dimensions
Overall Operating Height - Fully Raised144 in
Height to Hinge Pin - Fully Raised110 in
Dump reach - Full height23 in
Dump angle at full height40 °
Dump Height - Fully Raised84 in
Maximum Rollback Angle - Fully Raised98 °
Overall Height to top of ROPS76 in
Overall length with bucket121 in
Overall Length without Bucket93 in
Specified Height59 in
Reach at Specified Height30 in
Dump angle at specified height75 °
Carry Position6 in
Maximum Rollback Angle at Carry Position28 °
Digging Position0.71 in
Angle of Departure with STD Counterweight28 °
Ground clearance8 in
Track gauge45 in
Track Shoe Width12 in
Crawler base46 in
Overall width less bucket57 in
Bucket Width60 in
Clearance Radius - Front with Bucket76 in
Track Type / Track Rollers / Roller TypeRubber / 4 / Steel
Performances
Ground Speed - Single Speed6 mph
Drawbar Pull/Tractive Effort7161 lb
Bucket Breakout - Tilt Cylinder3501 lb
Bucket Breakout - Lift Cylinder3730 lb
Engine
Engine brandYanmar
Engine model4TNV88C-KMSV
Motor TypeRadial Piston
Engine power (Hp)46 Hp
Engine power (kW)34.30 kW
Battery voltage12 V
Cold Cranking Amps at Temperature (CCA)800 A
Alternator - Voltage / Ampere12 V / 100 A
Hydraulics
Standard flow - Auxiliary hydraulics17 US gpm
Tank capacities
Oil Pan Capacity2 US gal
Hydraulic tank capacity9 US gal
Fuel tank16 US gal
Displacement / Number of cylinders2 US gal / 4
1350RT Features & Benefits

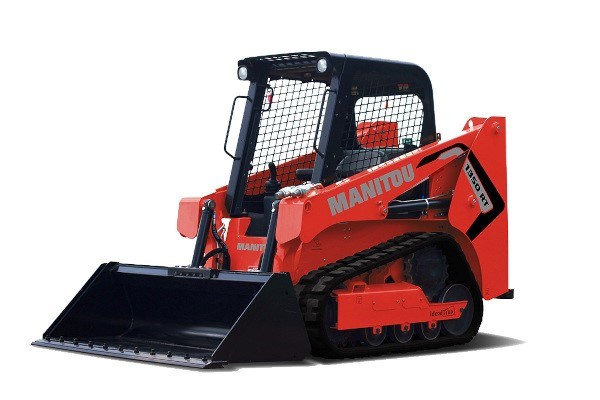

The compact robust design of the Manitou 1350 RT track loader along with the proven IdealTrax system makes it the ideal machine to work in the sand, mud as well as uneven terrain. Enjoy improved performance in excavation, grading and earth moving work, the 1350 RT is designed to operate in confined spaces, making it possible to perform all your daily tasks. Change out attachments within minutes and get a solution for every job required in agriculture and construction.
