Overall Operating Height - Fully Raised:  158 in
Dump reach - Full height:  25 in
Overall length with bucket:  126 in
Overall width less bucket:  69 in

  • Get a Quote Payment Calculator

    • Get information on the 1650RT

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

1650RT Specs & Compare
Download PDF
Capacities
Operating Weight8020 lb
Unladen weight8020 lb
Operating Capacity at 35% Tipping Load1649 lb
Operating Capacity At 50% Tipping Load2357 lb
Tipping capacity4716 lb
Weight and dimensions
Overall Operating Height - Fully Raised158 in
Height to Hinge Pin - Fully Raised120 in
Dump reach - Full height25 in
Dump angle at full height39 °
Dump Height - Fully Raised92 in
Maximum Rollback Angle - Fully Raised98 °
Overall Height to top of ROPS78 in
Overall length with bucket126 in
Overall Length without Bucket94 in
Specified Height64 in
Reach at Specified Height22 in
Dump angle at specified height73 °
Carry Position8 in
Maximum Rollback Angle at Carry Position28 °
Digging Position2 in
Angle of Departure with STD Counterweight28 °
Ground clearance7 in
Track gauge53 in
Track Shoe Width13 in
Crawler base50 in
Overall width less bucket69 in
Bucket Width66 in
Clearance Radius - Front with Bucket78 in
Angle of Approach90 °
Grouser Height0.98 in
Track Type / Track Rollers / Roller TypeRubber / 3 / Steel
Performances
Ground Speed - Single Speed7 mph
Ground Speed - Two Speed10 mph
Drawbar Pull/Tractive Effort9579 lb
Bucket Breakout - Tilt Cylinder4231 lb
Bucket Breakout - Lift Cylinder5060 lb
Engine
Engine brandYanmar
Engine model4TNV98C-NMS2
Motor TypeRadial Piston
Engine power (Hp)69.30 Hp
Engine power (kW)51 kW
Max. torque178 ft/lbs
Battery voltage12 V
Cold Cranking Amps at Temperature (CCA)950 A
Alternator - Voltage / Ampere12 V / 100 A
Hydraulics
Standard flow - Auxiliary hydraulics19 US gpm
Tank capacities
Oil Pan Capacity2 US gal
Hydraulic tank capacity10 US gal
Fuel tank17 US gal
Liquid cooling tank volume3 US gal
Displacement / Number of cylinders0.87 US gal / 4
Miscellaneous
Ground Pressure7 PSI
1650RT Features & Benefits

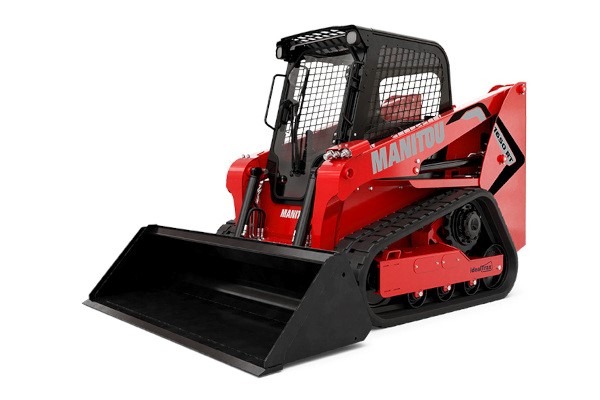

Looking for a compact track loader for your next landscaping or earth-moving project? Discover the improved performance of the Manitou 1650 RT track loader. With its compact design and strong structure, this latest machine allows you to dig, load, unload or transport materials on land of all types. To improve productivity, the 1650 RT track loader is compatible with several high-end attachments. Manitou track loaders are world renowned for their reliability, take the opportunity to demo this track loader and see how many operations can be done with a single machine.
