Rated Operating Capacity:  2100 lb
Overall Operating Height - Fully Raised:  159 in
Dump reach - Full height:  36 in
Overall length with bucket:  139 in

  • Get a Quote Payment Calculator

    • Get information on the 2100VT

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

2100VT Specs & Compare
Download PDF
Capacities
Rated Operating Capacity2100 lb
Operating Capacity At 50% Tipping Load3000 lb
Rated Operating Capacity with Optional Counterweight2200 lb
Operating Weight8865 lb
Unladen weight8049 lb
Tipping capacity5999 lb
Weight and dimensions
Overall Operating Height - Fully Raised159 in
Height to Hinge Pin - Fully Raised121 in
Overall Height to top of ROPS81 in
Dump angle at full height42 °
Dump height91 in
Overall length with bucket139 in
Dump reach - Full height36 in
Rollback Angle at Full Height92 °
Seat to ground height38 in
Overall width less bucket66 in
Ground clearance8 in
Overall length - Less Bucket108 in
Clearance Radius - Front with Bucket87 in
Rear departure angle25 °
Performances
Travel speed (unladen)6 mph
Travel Speed with Two-Speed Option - Maximum10 mph
Wheels
Transmission typeHydrostatic
Engine
Engine brandYanmar
Engine model4TNV98C-NGL
Engine normTier 4
Max. torque / Engine rotation178 ft/lbs / 1625 rpm
Power sourceDiesel
Number of cylinders4
Engine power (Hp / kW)69.30 Hp / 51 kW
Engine cooling systemWater
Battery voltage12 V
Alternator - Ampere100 A
Starter3 kW
Hydraulics
Standard flow - Auxiliary hydraulics23 US gpm
Auxiliary Hydraulic Pressure3475 PSI
High-Flow Auxiliary Hydraulics - Option30 US gpm
High-Flow Auxiliary Hydraulics Pressure - Option3325 PSI
Tank capacities
Fuel tank38 US gal
Hydraulic tank capacity6 US gal
Displacement0.87 US gal

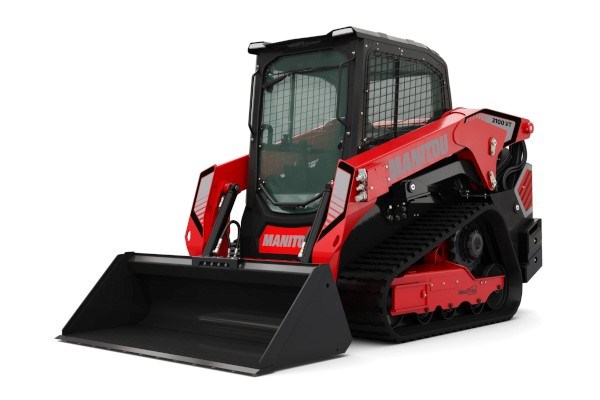

2100VT Features & Benefits

New from Manitou a robust range of vertical lift loaders to perform in the most demanding conditions. The vertical lift arms allow you to dump material further into large trucks,Increased fuel capacity and fast travel speeds provide agility and endurance to increase productivity.

The large cabin design, featuring several Manitou exclusive benefits, offers more comfort and ergonomics. Enhanced visibility provides the operator the ability for more precision in maneuvering tight areas. The flip-up cooler and cab also reduce customer TCO and offer top-of class service access making maintenance work easier than ever.

The 2100VT track loader is designed and tested for performance to deliver productivity. With 3,000 lbs (1 361 kg) of operating capacity, 69 horsepower and up to 9.5 mph (15,3 km/h) the 2100VT is perfect for construction and ag applications.
