Rated Operating Capacity:  2750 lb
Overall Operating Height - Fully Raised:  168 in
Dump reach - Full height:  35 in
Overall length with bucket: 150 in

  • Get a Quote Payment Calculator

    • Get information on the 2750VT

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

2750VT Specs & Compare
Download PDF
Capacities
Rated Operating Capacity2750 lb
Operating Capacity At 50% Tipping Load3929 lb
Rated Operating Capacity with Optional Counterweight2870 lb
Operating Weight10051 lb
Unladen weight9138 lb
Weight and dimensions
Overall Operating Height - Fully Raised168 in
Height to Hinge Pin - Fully Raised129 in
Overall Height to top of ROPS82 in
Dump angle at full height42 °
Dump height99 in
Overall length with bucket150 in
Dump reach - Full height35 in
Rollback Angle at Full Height92 °
Seat to ground height39 in
Overall width less bucket71 in
Ground clearance9 in
Overall length - Less Bucket119 in
Clearance Radius - Front with Bucket93 in
Rear departure angle30 °
Performances
Travel speed (unladen)6 mph
Travel Speed with Two-Speed Option - Maximum8 mph
Wheels
Transmission typeHydrostatic
Engine
Engine brandYanmar
Engine model4TNV98CT-XNGL
Engine normTier 4
Max. torque / Engine rotation217 ft/lbs / 1800 rpm
Power sourceDiesel
Number of cylinders4
Engine power (Hp / kW)72 Hp / 52.70 kW
Engine cooling systemWater
Battery voltage12 V
Alternator - Ampere100 A
Starter3 kW
Hydraulics
Standard flow - Auxiliary hydraulics26 US gpm
Auxiliary Hydraulic Pressure3475 PSI
High-Flow Auxiliary Hydraulics - Option33 US gpm
High-Flow Auxiliary Hydraulics Pressure - Option3325 PSI
Tank capacities
Fuel tank38 US gal
Hydraulic tank capacity6 US gal
Liquid cooling tank volume5 US gal
2750VT Features & Benefits

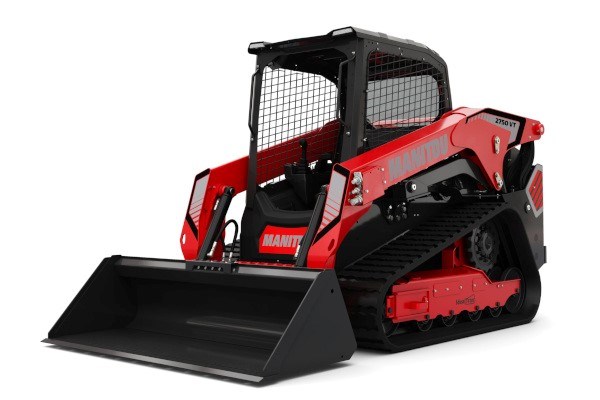

New from Manitou a robust range of vertical lift loaders to perform in the most demanding conditions. The vertical lift arms allow you to dump material further into large trucks,Increased fuel capacity and fast travel speeds provide agility and endurance to increase productivity.

The large cabin design, featuring several Manitou exclusive benefits, offers more comfort and ergonomics. Enhanced visibility provides the operator the ability for more precision in maneuvering tight areas. The flip-up cooler and cab also reduce customer TCO and offer top-of class service access making maintenance work easier than ever.

The 2750VT track loader is designed and tested for performance to deliver productivity. With 3,929 lbs (1 782 kg) of operating capacity, 72 horsepower and up to 8.4 mph (13,5 km/h) the 2750VT is perfect for construction and ag applications.
