Overall Operating Height - Fully Raised:  169 in
Dump reach - Full height:  40 in
Overall length with bucket:  160 in
Overall width less bucket:  70 in

  • Get a Quote Payment Calculator

    • Get information on the 3200VT

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

3200VT Specs & Compare
Download PDF
Capacities
Max. capacity9145 lb
Operating Weight11612 lb
Operating Capacity at 35% Tipping Load3201 lb
Operating Capacity At 50% Tipping Load4572 lb
Tipping capacity9145 lb
Weight and dimensions
Overall Operating Height - Fully Raised169 in
Height to Hinge Pin - Fully Raised130 in
Dump reach - Full height40 in
Dump angle at full height41 °
Dump Height - Fully Raised100 in
Maximum Rollback Angle - Fully Raised90 °
Overall Height to top of ROPS83 in
Overall length with bucket160 in
Departure angle24 °
Overall Length without Bucket128 in
Specified Height76 in
Reach at Specified Height30 in
Dump angle at specified height68 °
Carry Position8 in
Maximum Rollback Angle at Carry Position31 °
Digging Position0.75 in
Angle of Departure with STD Counterweight24 °
Ground clearance12 in
Track gauge52 in
Track Shoe Width18 in
Crawler base62 in
Overall width less bucket70 in
Bucket Width84 in
Clearance Radius - Front with Bucket96 in
Angle of Approach90 °
Grouser Height1 in
Track Type / Track Rollers / Roller TypeRubber / 5 / Steel
Performances
Ground Speed - Single Speed5 mph
Ground Speed - Two Speed8 mph
Drawbar Pull/Tractive Effort12769 lb
Bucket Breakout - Tilt Cylinder9903 lb
Bucket Breakout - Lift Cylinder7491 lb
Engine
Engine brandDeutz
Engine modelTD 3.6
Motor TypeAxial Piston with Planetary Gear Box Reduction
Engine power (Hp)114 Hp
Engine power (kW)85 kW
Max. torque317 ft/lbs
Battery voltage12 V
Cold Cranking Amps at Temperature (CCA)950 A
Alternator - Voltage / Ampere14 V / 95 A
Hydraulics
Standard flow - Auxiliary hydraulics27 US gpm
High-Flow Auxiliary Hydraulics - Option38 US gpm
Tank capacities
Oil Pan Capacity2 US gal
Hydraulic tank capacity17 US gal
Fuel tank32 US gal
Liquid cooling tank volume5 US gal
Displacement / Number of cylinders0.95 US gal / 4
Miscellaneous
Ground Pressure5 PSI

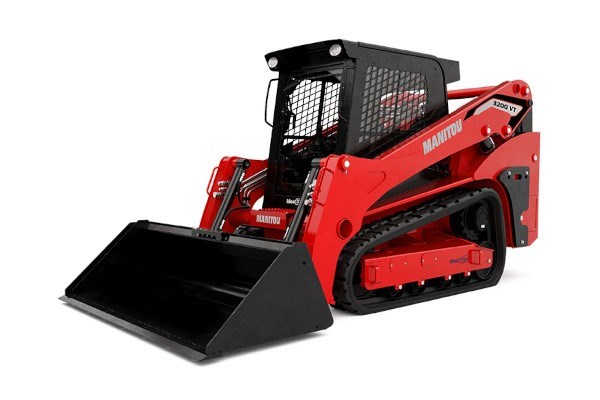

3200VT Features & Benefits

Enjoy improved full-sized performance of 3200 VT vertical-lift track loader. This model can easily work in hard to access areas on the jobsite nomatter the soil conditions. Combining compactness, robustness, accuracy and speed of movement, the 3200 VT track loader enables you to excavate the land or load up 2074 kg rated operating capacity with optional counterweight. Many other applications are possible thanks to the ability to change attachments within minutes. This track loader meets the requirements of building professionals, industry and agriculture.
