Overall Operating Height - Fully Raised:  174 in
Overall length with bucket:  156 in
Overall width less bucket:  80 in
Engine power (kW):  85 kW

  • Get a Quote Payment Calculator

    • Get information on the 3600VT

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

3600VT Specs & Compare
Download PDF
Capacities
Operating Weight12161 lb
Operating Capacity at 35% Tipping Load3600 lb
Operating Capacity At 50% Tipping Load5141 lb
Operating capacity at 35% tipping load with counterweight3748 lb
Tipping capacity10287 lb
Weight and dimensions
Wheelbase67 in
Overall Operating Height - Fully Raised174 in
Height to Hinge Pin - Fully Raised136 in
Reach - Fully Raised37 in
Dump angle at full height41 °
Dump Height - Fully Raised105 in
Overall Height to top of ROPS84 in
Overall length with bucket156 in
Overall Length without Bucket125 in
Specified Height101 in
Reach at Specified Height39 in
Ground clearance9 in
Crawler base67 in
Overall width less bucket80 in
Bucket Width84 in
Clearance Radius - Front with Bucket96 in
Performances
Ground Speed - Single Speed6 mph
Ground Speed - Two Speed9 mph
Engine
Engine brandDeutz
Engine modelTCD3.6
Engine power (Hp)114 Hp
Engine power (kW)85 kW
Hydraulics
Standard flow - Auxiliary hydraulics25 US gpm
High-Flow Auxiliary Hydraulics - Option40 US gpm
Tank capacities
Hydraulic tank capacity8 US gal
Fuel tank38 US gal
3600VT Features & Benefits

New from Manitou a robust range of vertical lift loaders to perform in the most demanding conditions. The vertical lift arms allow you to dump material further into large trucks,Increased fuel capacity and fast travel speeds provide agility and endurance to increase productivity.

The large cabin design, featuring several Manitou exclusive benefits, offers more comfort and ergonomics. Enhanced visibility provides the operator the ability for more precision in maneuvering tight areas. The flip-up cooler and cab also reduce customer TCO and offer top-of class service access making maintenance work easier than ever.

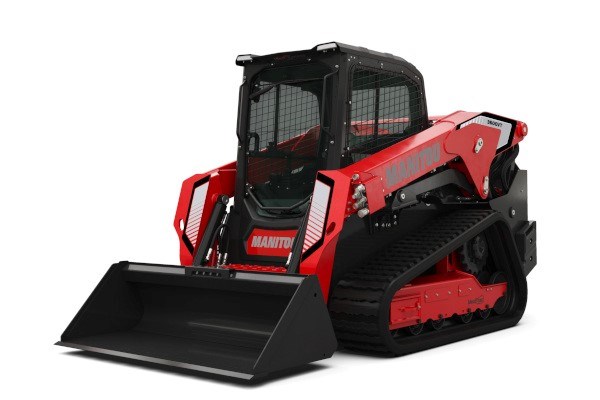

The 3600VT track loader is designed and tested for performance to deliver productivity. With 5357 lbs (2430 kg) of operating capacity, 114 horsepower and up to 8,7 mph (14.8 km/h) the 3600VT is perfect for construction and agriculture applications.
