Rated Operating Capacity:  1049 lb
Overall Operating Height - Fully Raised:  140 in
Dump reach - Full height:  23 in
Overall length with bucket:  114 in

  • Get a Quote Payment Calculator

    • Get information on the 1050R

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

1050R Specs & Compare
Download PDF
Capacities
Rated Operating Capacity1049 lb
Rated Operating Capacity with Optional Counterweight1175 lb
Unladen weight4200 lb
Weight and dimensions
Wheelbase34 in
Overall Operating Height - Fully Raised140 in
Height to Hinge Pin - Fully Raised108 in
Overall Height to top of ROPS70 in
Dump angle at full height42 °
Dump height84 in
Overall length with bucket114 in
Dump reach - Full height23 in
Rollback at ground29 °
Seat to ground height33 in
Overall width less bucket48 in
Bucket Width55 in
Ground clearance6 in
Overall length - Less Bucket89 in
Departure angle26 °
Clearance Radius - Front with Bucket69 in
Performances
Travel speed (unladen)6 mph
Wheels
Standard tires27 x 8.5 x 15 HD
Engine
Engine brandYanmar
Engine model3TNV88C-KMSV
Engine normTier 4
Max. torque / Engine rotation80 ft/lbs / 2800 rpm
Power sourceDiesel
Engine power (Hp / kW)34.20 Hp / 24.70 kW
Battery voltage12 V
Alternator40 kW
Starter2.30 kW
Hydraulics
Standard flow - Auxiliary hydraulics15 US gpm
Auxiliary Hydraulic Pressure2750 PSI
Tank capacities
Fuel tank10 US gal
Hydraulic tank capacity8 US gal
Displacement0.42 US gal
Noise and vibration
Noise to environment (LwA)101 dB
Noise at driving position (LpA)80 dB
Whole-Body Vibration (ISO 2631-1)3 ft/s²
Vibration on hands/arms< 3 ft/s²
1050R Features & Benefits

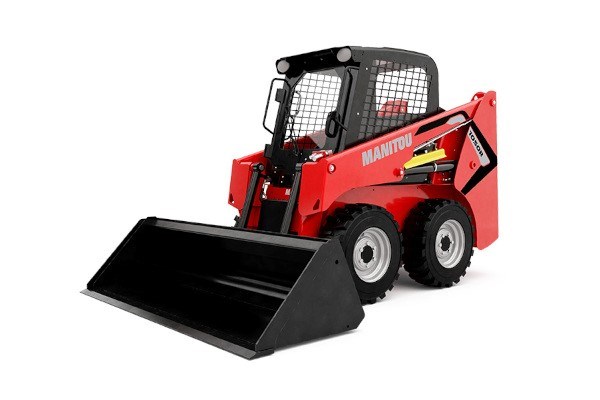

Carry out your leveling, loading and grading tasks with ultra-compact 1050 R skid loader. The compactness of this Manitou loader and the ergonomic driving position allows you to operate easily, even in the most confined, difficult to access spaces. Enjoy the versatility of the ultra-compact 1050 R skid loader to perform your various operations in - transporting, loading, unloading, height positioning and change out attachments within minutes to complete multple projects at a time.
