Rated Operating Capacity:  1349 lb
Overall Operating Height - Fully Raised:  144 in
Dump reach - Full height:  23 in
Overall length with bucket:  121 in

  • Get a Quote Payment Calculator

    • Get information on the 1350R NXT2

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

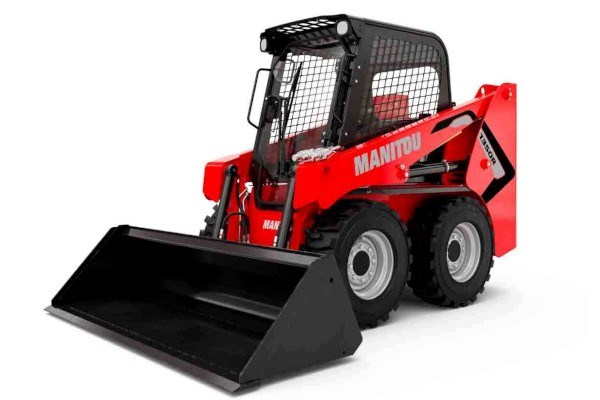

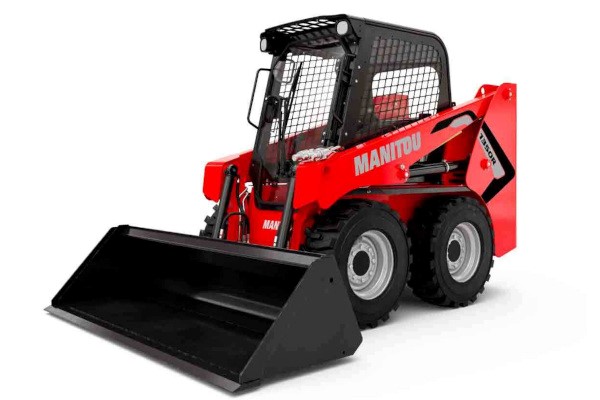

1350R NXT2 Specs & Compare
Download PDF
Capacities
Rated Operating Capacity1349 lb
Rated Operating Capacity with Optional Counterweight1499 lb
Unladen weight5256 lb
Weight and dimensions
Wheelbase37 in
Overall Operating Height - Fully Raised144 in
Height to Hinge Pin - Fully Raised110 in
Overall Height to top of ROPS76 in
Dump angle at full height40 °
Dump height84 in
Overall length with bucket121 in
Dump reach - Full height23 in
Rollback at ground28 °
Seat to ground height34 in
Overall width less bucket54 in
Bucket Width54 in
Ground clearance8 in
Overall length - Less Bucket93 in
Departure angle25 °
Clearance Radius - Front with Bucket73 in
Rear departure angle25 °
Performances
Travel speed (unladen)8 mph
Wheels
Standard tires10.00 x 16.5 HD
Engine
Engine brandYanmar
Engine model4TNV88C-KMS
Engine normTier 4
Max. torque / Engine rotation108 ft/lbs / 2800 rpm
Power sourceDiesel
Engine power (Hp / kW)46 Hp / 34.30 kW
Battery voltage12 V
Alternator100 kW
Starter2.30 kW
Hydraulics
Standard flow - Auxiliary hydraulics17 US gpm
Auxiliary Hydraulic Pressure3002 PSI
Tank capacities
Fuel tank16 US gal
Hydraulic tank capacity9 US gal
Displacement0.58 US gal
Liquid cooling tank volume2 US gal
Noise and vibration
Noise to environment (LwA)82 dB
Noise at driving position (LpA)100 dB
Whole-Body Vibration (ISO 2631-1)3 ft/s²
Vibration on hands/arms< 6 ft/s²
