Rated Operating Capacity:  1649 lb
Overall Operating Height - Fully Raised:  153 in
Dump reach - Full height:  23 in
Overall length with bucket:  122 in

  • Get a Quote Payment Calculator

    • Get information on the 1650R

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

1650R Specs & Compare
Download PDF
Capacities
Rated Operating Capacity1649 lb
Rated Operating Capacity with Optional Counterweight1800 lb
Unladen weight6164 lb
Weight and dimensions
Wheelbase39 in
Overall Operating Height - Fully Raised153 in
Height to Hinge Pin - Fully Raised119 in
Overall Height to top of ROPS77 in
Dump angle at full height38 °
Dump height94 in
Overall length with bucket122 in
Dump reach - Full height23 in
Rollback at ground28 °
Seat to ground height36 in
Overall width less bucket62 in
Bucket Width61 in
Ground clearance6 in
Overall length - Less Bucket94 in
Departure angle21 °
Clearance Radius - Front with Bucket74 in
Performances
Travel speed (unladen)8 mph
Travel Speed with Two-Speed Option - Maximum12 mph
Wheels Standard tires10.00 x 16.5 HD
Engine
Engine brandYanmar
Engine model4TNV88C-KMS
Engine normTier 4
Max. torque / Engine rotation178 ft/lbs / 2500 rpm
Power sourceDiesel
Engine power (Hp / kW)69.73 Hp / 51 kW
Battery voltage12 V
Alternator100 kW
Starter3 kW
Hydraulics
Standard flow - Auxiliary hydraulics19 US gpm
Auxiliary Hydraulic Pressure3002 PSI
High-Flow Auxiliary Hydraulics - Option30 US gpm
High-Flow Auxiliary Hydraulics Pressure - Option2596 PSI
Tank capacities
Fuel tank17 US gal
Hydraulic tank capacity11 US gal
Displacement0.87 US gal
Noise and vibration
Noise to environment (LwA)101 dB
Noise at driving position (LpA)85 dB
Whole-Body Vibration (ISO 2631-1)3 ft/s²
Vibration on hands/arms< 6 ft/s²
1650R Features & Benefits

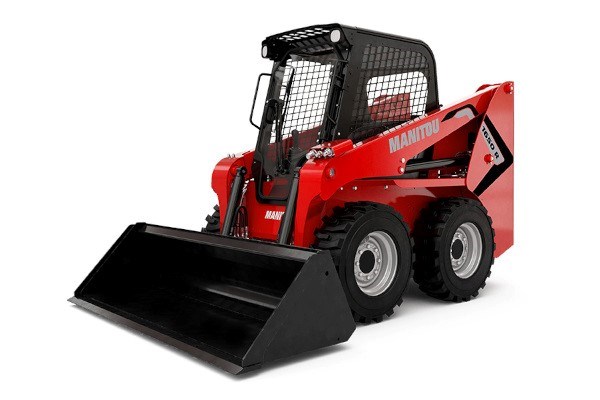

Get a powerful and versatile solution for your farm or construction operation with the 1650 R skid loader. Very compact, this latest generation machine is ideal for your most demanding applications in confined spaces and on uneven or irregular ground. Combining driving comfort, precision of movement, multifunctional use (with several compatible attachments), resistance and ease of maintenance, the 1650 R compact skid loader meets all your requirements for loading / unloading, palletizing, agriculture, transportation heavy loads ... See it for yourself today!
