Overall Operating Height - Fully Raised:  153 in
Dump reach - Full height:  23 in
Overall length with bucket:  128 in
Overall width less bucket:  62 in

  • Get a Quote Payment Calculator

    • Get information on the 1900R NXT2

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

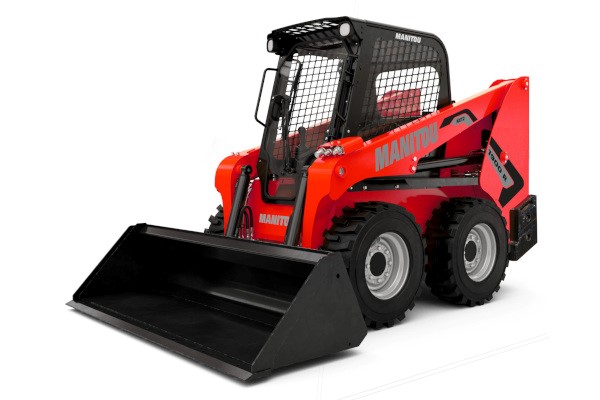

1900R NXT2 Specs & Compare
Download PDF
Capacities
Operating Capacity At 50% Tipping Load1900 lb
Operating Weight6995 lb
Weight and dimensions
Wheelbase42 in
Overall Operating Height - Fully Raised153 in
Height to Hinge Pin - Fully Raised119 in
Overall Height to top of ROPS77 in
Dump angle at full height38 °
Dump height94 in
Overall length with bucket128 in
Dump reach - Full height23 in
Rollback at ground28 °
Rollback Angle at Full Height99 °
Seat to ground height36 in
Overall width less bucket62 in
Bucket Width66 in
Ground clearance6 in
Overall length - Less Bucket96 in
Clearance Radius - Front with Bucket80 in
Rear departure angle21 °
Performances
Travel speed (unladen)8 mph
Travel Speed with Two-Speed Option - Maximum12 mph
Wheels
Standard tires10 x 16.5
Engine
Engine brandYanmar
Engine model4TNV98C-NMS2V
Engine normStage IV, Tier 4 final
Max. torque / Engine rotation178 ft/lbs / 1625 rpm
Power sourceDiesel
Engine power (Hp / kW)69.30 Hp / 51 kW
Battery voltage12 V
Starter3 kW
Hydraulics
Standard flow - Auxiliary hydraulics19 US gpm
Auxiliary Hydraulic Pressure3002 PSI
High-Flow Auxiliary Hydraulics - Option30 US gpm
High-Flow Auxiliary Hydraulics Pressure - Option2596 PSI
Tank capacities
Fuel tank16 US gal
Hydraulic tank capacity9 US gal
Noise and vibration
Noise to environment (LwA)100 dB
Whole-Body Vibration (ISO 2631-1)3 ft/s²
Vibration on hands/arms< 5 ft/s²
1900R NXT2 Features & Benefits

A versatile machine for the construction and agricultural markets. A compact, all-terrain machine that stands up to even the most demanding conditions.Thanks to its wide range of accessories, this machine combines performance, comfort, precision of use and versatility of application.
