2300V Specs & Compare
Download PDF
Capacities
Operating Capacity At 50% Tipping Load2300 lb
Operating Weight7749 lb
Unladen weight6945 lb
Tipping capacity4600 lb
Weight and dimensions
Wheelbase43 in
Overall Operating Height - Fully Raised159 in
Height to Hinge Pin - Fully Raised122 in
Overall Height to top of ROPS81 in
Dump angle at full height42 °
Dump height91 in
Overall length with bucket141 in
Dump reach - Full height33 in
Rollback Angle at Full Height92 °
Seat to ground height39 in
Overall width less bucket67 in
Ground clearance8 in
Overall length - Less Bucket110 in
Clearance Radius - Front with Bucket85 in
Performances
Travel speed (unladen)8 mph
Travel Speed with Two-Speed Option - Maximum12 mph
Wheels
Transmission typeHydrostatic
Engine
Engine brandYanmar
Engine model4TNV98CT-XNGL
Engine normTier 4
Max. torque / Engine rotation217 ft/lbs / 1800 rpm
Power sourceDiesel
Number of cylinders4
Engine power (Hp / kW)72 Hp / 52.70 kW
Engine cooling systemWater
Battery voltage12 V
Alternator - Ampere100 A
Starter3 kW
Hydraulics
Standard flow - Auxiliary hydraulics23 US gpm
Auxiliary Hydraulic Pressure3475 PSI
High-Flow Auxiliary Hydraulics - Option30 US gpm
High-Flow Auxiliary Hydraulics Pressure - Option3325 PSI
Tank capacities
Fuel tank28 US gal
Hydraulic tank capacity6 US gal
Displacement0.87 US gal
Liquid cooling tank volume5 US gal

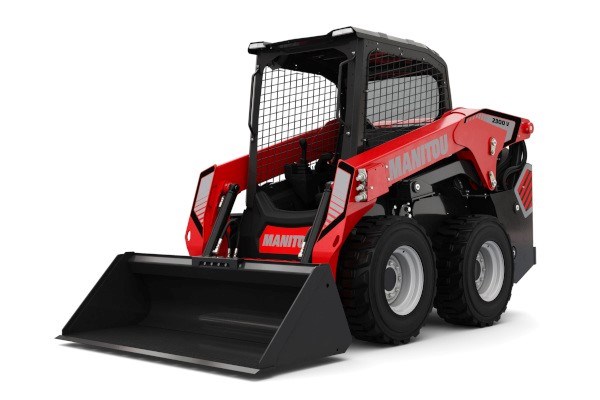

2300V Features & Benefits

New from Manitou a robust range of vertical lift loaders to perform in the most demanding conditions. The vertical lift arms allow you to dump material further into large trucks,Increased fuel capacity and fast travel speeds provide agility and endurance to increase productivity.

The large cabin design, featuring several Manitou exclusive benefits, offers more comfort and ergonomics. Enhanced visibility provides the operator the ability for more precision in maneuvering tight areas. The flip-up cooler and cab also reduce customer TCO and offer top-of class service access making maintenance work easier than ever.

The 2300V skid loader is designed and tested for performance to deliver productivity. With 2,300 lbs (1043 kg) of operating capacity, 72 horsepower and up to 12.6 mph (20 km/h) the 2300V is perfect for construction and ag applications.
