Rated Operating Capacity:  3300 lb
Overall Operating Height - Fully Raised:  172 in
Dump reach - Full height:  32 in
Overall length with bucket:  153 in

  • Get a Quote Payment Calculator

    • Get information on the 3300V NXT2

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

3300V NXT2 Specs & Compare
Download PDF
Capacities
Rated Operating Capacity3300 lb
Unladen weight9010 lb
Weight and dimensions
Wheelbase49 in
Overall Operating Height - Fully Raised172 in
Height to Hinge Pin - Fully Raised131 in
Overall Height to top of ROPS82 in
Dump angle at full height42 °
Dump height99 in
Overall length with bucket153 in
Dump reach - Full height32 in
Rollback at ground29 °
Seat to ground height41 in
Overall width less bucket72 in
Bucket Width74 in
Ground clearance9 in
Overall length - Less Bucket119 in
Departure angle25 °
Clearance Radius - Front with Bucket94 in
Performances
Travel speed (unladen)8 mph
Travel Speed with Two-Speed Option - Maximum12 mph
Wheels
Standard tires14.00 x 17.5 HD
Engine
Engine brandYanmar
Engine model4TNV98CT-NMS
Engine normTier 4
Max. torque / Engine rotation217 ft/lbs / 2500 rpm
Power sourceDiesel
Engine power (Hp / kW)72 Hp / 52.70 kW
Battery voltage12 V
Alternator95 kW
Starter3 kW
Hydraulics
Standard flow - Auxiliary hydraulics24 US gpm
Auxiliary Hydraulic Pressure3450 PSI
High-Flow Auxiliary Hydraulics - Option35 US gpm
High-Flow Auxiliary Hydraulics Pressure - Option3200 PSI
Tank capacities
Fuel tank24 US gal
Hydraulic tank capacity11 US gal
Displacement0.87 US gal
Noise and vibration
Noise to environment (LwA)101 dB
Noise at driving position (LpA)85 dB
Whole-Body Vibration (ISO 2631-1)3 ft/s²
Vibration on hands/arms< 4 ft/s²
3300V NXT2 Features & Benefits

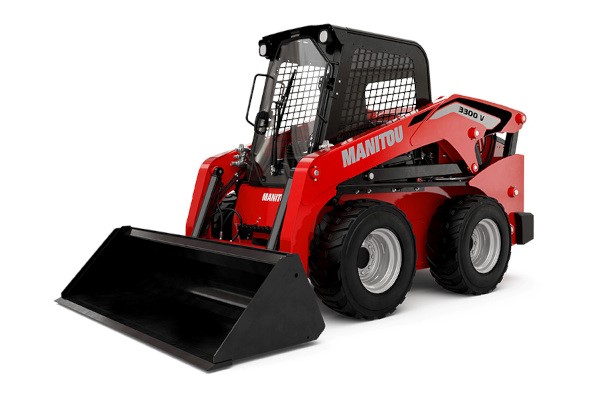

Discover the unprecedented performance of the vertical-lift 3300 V NXT: 2 skid loader. Equipped with a Yanmar engine, this latest generation skid loader helps you perform all your loading, grading and excavation under the ground level. Compact, rugged, and made for all-terrain, this unit is the ideal solution for working in hard to reach areas on uneven surfaces. Change attachments within minutes and get a solution for every project! The vertical-lift 3300 V NXT:2 skid loader facilitates your various daily loading operations and delivers excellent operator visibility from the cab.
