Overall Operating Height - Fully Raised:  173 in
Dump reach - Full height:  33 in
Overall length with bucket:  154 in
Overall width less bucket:  73 in

  • Get a Quote Payment Calculator

    • Get information on the 3350V

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

3350V Specs & Compare
Download PDF
Capacities
Operating Capacity At 50% Tipping Load3350 lb
Rated Operating Capacity with Optional Counterweight3550 lb
Operating Weight9835 lb
Tipping capacity6702 lb
Weight and dimensions
Wheelbase53 in
Overall Operating Height - Fully Raised173 in
Height to Hinge Pin - Fully Raised134 in
Overall Height to top of ROPS82 in
Dump angle at full height41 °
Dump height104 in
Overall length with bucket154 in
Dump reach - Full height33 in
Rollback Angle at Full Height94 °
Seat to ground height41 in
Overall width less bucket73 in
Bucket Width74 in
Ground clearance8 in
Overall length - Less Bucket123 in
Clearance Radius - Front with Bucket91 in
Performances
Travel speed (unladen)7 mph
Travel Speed with Two-Speed Option - Maximum12 mph
Wheels
Standard tires12 x 16.5
Engine
Engine brandDeutz
Engine modelTCD3.6
Max. torque / Engine rotation302 ft/lbs / 1600 rpm
Power sourceBattery
Engine power (Hp / kW)99.80 Hp / 73.38 kW
Starter4 kW
Hydraulics
Standard flow - Auxiliary hydraulics25 US gpm
Auxiliary Hydraulic Pressure3450 PSI
High-Flow Auxiliary Hydraulics - Option40 US gpm
High-Flow Auxiliary Hydraulics Pressure - Option3450 PSI
Tank capacities
Fuel tank28 US gal
Hydraulic tank capacity7 US gal
3350V Features & Benefits

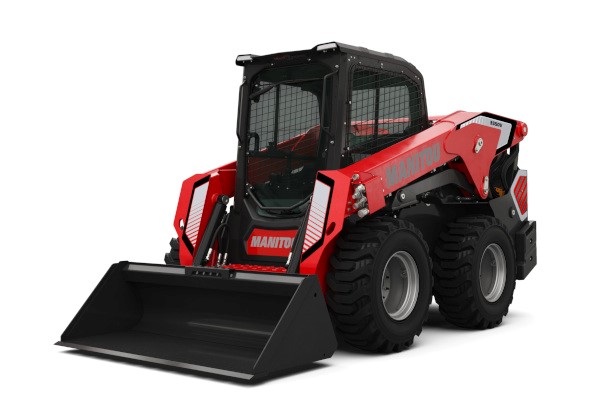

New from Manitou a robust range of vertical lift loaders to perform in the most demanding conditions. The vertical lift arms allow you to dump material further into large trucks,Increased fuel capacity and fast travel speeds provide agility and endurance to increase productivity.

The large cabin design, featuring several Manitou exclusive benefits, offers more comfort and ergonomics. Enhanced visibility provides the operator the ability for more precision in maneuvering tight areas. The flip-up cooler and cab also reduce customer TCO and offer top-of class service access making maintenance work easier than ever.

The 3350V skid loader is designed and tested for performance to deliver productivity. With 3,350 lbs (1520 kg) of operating capacity, 99.8 horsepower and up to 12.1 mph (19.5 km/h) the 3350V is perfect for construction and agriculture applications.
