Overall Operating Height - Fully Raised:  175 in
Dump reach - Full height:  31 in
Overall length with bucket:  156 in
Overall width less bucket:  75 in

  • Get a Quote Payment Calculator

    • Get information on the 3600V

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

3600V Specs & Compare
Download PDF
Capacities
Operating Capacity At 50% Tipping Load3600 lb
Rated Operating Capacity with Optional Counterweight3801 lb
Operating Weight10320 lb
Tipping capacity7200 lb
Weight and dimensions
Wheelbase52 in
Overall Operating Height - Fully Raised175 in
Height to Hinge Pin - Fully Raised136 in
Overall Height to top of ROPS84 in
Dump angle at full height41 °
Dump height105 in
Overall length with bucket156 in
Dump reach - Full height31 in
Rollback at ground29 °
Rollback Angle at Full Height94 °
Seat to ground height43 in
Overall width less bucket75 in
Bucket Width84 in
Ground clearance10 in
Overall length - Less Bucket125 in
Clearance Radius - Front with Bucket93 in
Performances
Travel speed (unladen)7 mph
Travel Speed with Two-Speed Option - Maximum12 mph
Wheels
Standard tires14.00 x 17.5 HD
Engine
Engine brandDeutz
Engine modelTCD3.6
Max. torque / Engine rotation339 ft/lbs / 1600 rpm
Power sourceBattery
Engine power (Hp / kW)114 Hp / 85 kW
Starter4 kW
Hydraulics
Standard flow - Auxiliary hydraulics25 US gpm
Auxiliary Hydraulic Pressure3450 PSI
High-Flow Auxiliary Hydraulics - Option40 US gpm
High-Flow Auxiliary Hydraulics Pressure - Option3450 PSI
Tank capacities
Fuel tank28 US gal
Hydraulic tank capacity8 US gal

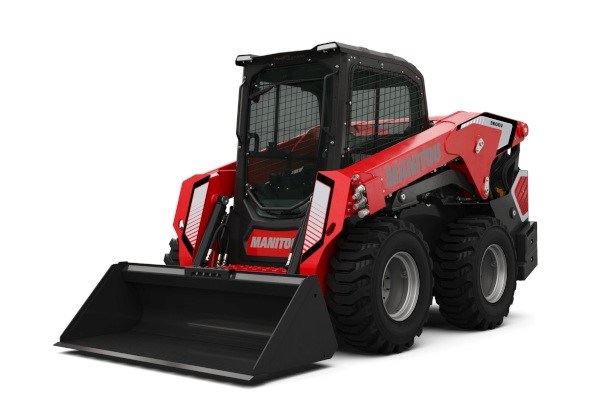

3600V Features & Benefits

New from Manitou a robust range of vertical lift loaders to perform in the most demanding conditions. The vertical lift arms allow you to dump material further into large trucks,Increased fuel capacity and fast travel speeds provide agility and endurance to increase productivity.

The large cabin design, featuring several Manitou exclusive benefits, offers more comfort and ergonomics. Enhanced visibility provides the operator the ability for more precision in maneuvering tight areas. The flip-up cooler and cab also reduce customer TCO and offer top-of class service access making maintenance work easier than ever.

The 3600V skid loader is designed and tested for performance to deliver productivity. With 3,600 lbs (1633 kg) of operating capacity, 114 horsepower and up to 12.4 mph (20 km/h) the 3600V is perfect for construction and agriculture applications.
