Max. capacity:  10000 lb
Max. lifting height:  55 ft 7 in
Maximum outreach:  42 ft 3 in
Engine power (kW):  95 kW

  • Get a Quote Payment Calculator

    • Get information on the MTA 1055

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

MTA 1055 Specs & Compare
Download PDF
CapacitiesImperial
Max. capacity10000 lb
Max. lifting height55 ft 7 in
Maximum outreach42 ft 3 in
Weight and dimensions
Length to face of forks21 ft
Overall length (with forks)25 ft
Overall width8 ft 4 in
Overall height8 ft 6 in
Wheelbase11 ft 6 in
Ground clearance1 ft 7 in
Overall cab width3 ft 1 in
Tilt-up angle34 °
Tilt-down angle96 °
External turning radius12 ft 10 in
Overall weight30300 lb
Tires typePneumatic
Forks length / width / section48 in x 5 in x 2 in
Frame leveling corrector10 °
Performances
Lifting16 s
Lowering11 s
Extension18 s
Retraction16 s
Crowd4 s
Dump6 s
Engine
Engine brandDeutz
Engine normTier 4 fi nal
Engine modelTCD 3.6 L4
Number of cylinders / Capacity of cylinders4 - 220 in³
Engine power (Hp/kW)127 Hp / 95 kW
Max. torque / Engine rotation369 ft/lbs @ 2300 rpm
Drawbar pull12519 daN
Transmission
Transmission typePowershift
Number of gears (forward / reverse)5 / 3
Max. travel speed20 mph
Parking brakeHydraulic spring release SAHR
Service brakeWet disc brakes
Hydraulics
Hydraulic pump typeAxial piston
Hydraulic fl ow / Pressure40 US gpm-4000 PSI
Tank capacities
Engine oil2 US gal
Hydraulic oil42 US gal
Diesel Exhaust fl uid (AdBlue® type)4 US gal
Fuel tank38 US gal
Noise and vibration
Noise at driving position (LpA)80 dB
Miscellaneous
Steering wheels (front / rear)2 / 2
Drive wheels (front / rear)2 / 2
ControlsJoystick
MTA 1055 Features & Benefits

The new MTA Serie is designed to meet the needs of North American construction markets and rental sectors.

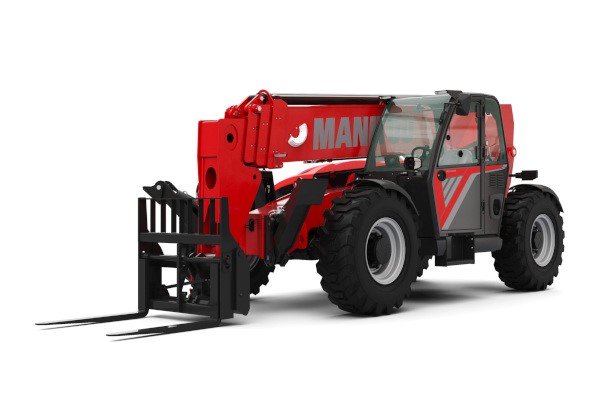

The MTA 1055: high lift with full power performance. MTA 1055 has 10,000 lbs. (4,536 kg) capacity with max lift to 55' 7" (16.9 m) and reach to 42' 3" (12.9 m). Deutz 127 HP and 5 speed power shift trasmission.

The new design also offers better visibility, comfort, performance, and a reduced total cost of ownership.

  • New cabin design for more comfort and visibility
  • Enhanced performance from combined hydraulic movements
  • Better TCO with robust, high quality components
