Max. capacity: 12000 lb
Max. lifting height:  42 ft 6 in
Maximum outreach:  28 ft 6 in
Engine power (kW):  95 kW

  • Get a Quote Payment Calculator

    • Get information on the MTA 1242 MAX E74

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

MTA 1242 MAX E74 Specs & Compare
Download PDF
Capacities
Max. capacity12000 lb
Max. lifting height42 ft 6 in
Maximum outreach28 ft 6 in
Weight and dimensions
Overall length to carriage20 ft 8 in
Overall length (with forks)24 ft 8 in
Overall width8 ft 4 in
Overall height8 ft 1 in
Wheelbase11 ft 6 in
Ground clearance1 ft 7 in
Overall cab width3 ft 1 in
Tilt-up angle34 °
Tilt-down angle96 °
External turning radius12 ft 9 in
Overall weight28300 lb
Tires typePneumatic
Forks length / width / section48 in x 6 in x 2 in
Frame leveling corrector10 °
Performances
Lifting16 s
Lowering11 s
Extension17 s
Retraction12 s
Crowd4 s
Dump6 s
Engine
Engine brandDeutz
Engine normTier 4 final
Engine modelTCD 3.6 L4
Number of cylinders / Capacity of cylinders4 - 220 in³
Engine power (Hp/kW)74 Hp / 95 kW
Max. torque / Engine rotation288 ft/lbs @ 2300 rpm
Transmission
Transmission typePowershift
Number of gears (forward / reverse)5 / 3
Max. travel speed22 mph
Parking brakeHydraulic spring release SAHR
Service brakeWet disc brakes
Hydraulics
Hydraulic pump typeAxial piston
Hydraulic flow / Pressure40 US gpm-4000 PSI
Tank capacities
Engine oil2 US gal
Hydraulic oil38 US gal
Fuel tank38 US gal
Noise and vibration
Noise at driving position (LpA)80 dB
Miscellaneous
Steering wheels (front / rear)2 / 2
Drive wheels (front / rear)2 / 2
MTA 1242 MAX E74 Features & Benefits

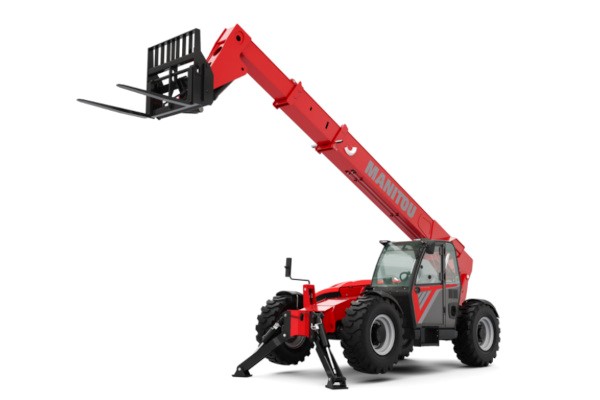

Manitou is also introducing the all-new MTA 1242 MAX and MTA 1242 MAX E74 models. These machines are based on the design of the MTA 1242, but feature the addition of front outriggers for enhanced stability and lifting power.

The "MAX" designation makes it easy to distinguish these upgraded models from the standard versions, ensuring customers can quickly identify the right machine for their jobsite needs. While the rated capacity on tires remains the same, deploying the front outriggers increases lift capacity from 2,500 lbs. to 4,000 lbs., depending on forward reach. This expanded capability provides contractors with more versatility when handling materials at extended heights or distances.
