Max. capacity:  6601 lb
Max. lifting height:  42 ft
Maximum outreach:  28 ft 3 in
Engine power (kW):  55 kW

  • Get a Quote Payment Calculator

    • Get information on the MTA 6642 E74

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

MTA 6642 E74 Specs & Compare
Download PDF
Capacities
Max. capacity6601 lb
Max. lifting height42 ft
Maximum outreach28 ft 3 in
Weight and dimensions
Overall length to carriage19 ft 1 in
Overall width8 ft 2 in
Overall height7 ft 8 in
Wheelbase9 ft 11 in
Ground clearance16 in
Overall cab width33 in
Tilt-up angle32 °
Tilt-down angle112 °
External turning radius13 ft 9 in
Overall weight22002 lb
Tires typeInflatable
Stadard tires13 x 24
Forks length / width / section47 in x 5 in x 2 in
Performances
Lifting11 s
Lowering8 s
Extension14 s
Retraction12 s
Crowd7 s
Dump4 s
Engine
Engine brandDeutz
Engine normStage IV, Tier 4 final
Engine modelTCD 3.6 L4
Number of cylinders / Capacity of cylinders4 - 0.23 in³
Engine power (Hp/kW)74 Hp / 55 kW
Max. torque / Engine rotation288 ft/lbs @ 1300 rpm
Transmission
Transmission typeTorque converter with powershift gearbox
Number of gears (forward / reverse)4 / 3
Max. travel speed15 mph
Parking brakeHydraulic spring release SAHR
Service brakeWet disc brakes
Axle ManufacturerDana
Hydraulics
Hydraulic pump typeGear pump
Hydraulic flow / Pressure41 US gpm-3002 PSI
Tank capacities
Engine oil4 US gal
Hydraulic oil45 US gal
Fuel tank47 US gal
Miscellaneous
Steering wheels (front / rear)2 / 2
Drive wheels (front / rear)2 / 2
Cab certificationROPS/FOPS
ControlsJoystick

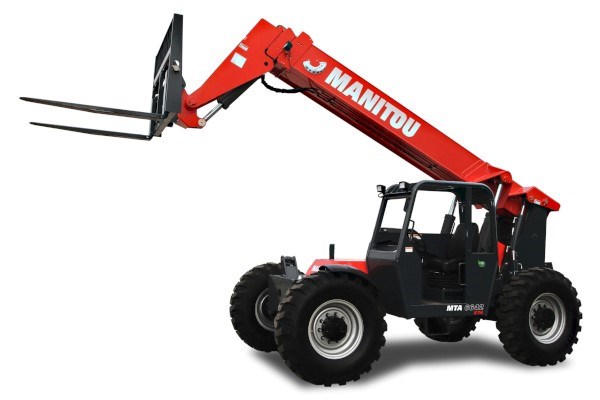

MTA 6642 E74 Features & Benefits

The MTA 6642 E74 telescopic handler responds specifically to the requirements of the construction, energy or civil engineering markets. With a maximum load capacity of 2994 kg and a significant lift height (12.8 m), this high-performance model allows you to handle your materials in ideal conditions. Work with comfort and safety thanks to 360 degree visibility offered by the ergonomic cab, off-road design and many of the telescopic protection systems. To meet all your needs, the MTA 6642 E74 is compatible with many attachments.
