Max. capacity:  6601 lb
Max. lifting height:  42 ft
Maximum outreach:  28 ft 3 in
Engine power (kW):  89 kW

  • Get a Quote Payment Calculator

    • Get information on the MTA 6642 SERIES IV

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

MTA 6642 SERIES IV Specs & Compare
Download PDF
Capacities
Max. capacity6601 lb
Max. lifting height42 ft
Maximum outreach28 ft 3 in
Weight and dimensions
Overall length to carriage19 ft 1 in
Overall width8 ft 2 in
Overall height7 ft 8 in
Wheelbase9 ft 11 in
Ground clearance16 in
Overall cab width33 in
Tilt-up angle32 °
Tilt-down angle112 °
External turning radius13 ft 9 in
Unladen weight (with forks)
22002 lb
Stadard tires
13 x 24
Frame leveling longitudinal +/-
10°
Frame leveling corrector
10°
Performances
Lifting11 s
Lowering8 s
Extension14 s
Retraction12 s
Crowd7 s
Dump4 s
Engine
Engine brandDeutz
Engine normTier 4 final
Engine modelTCD 3.6 L4
Number of cylinders / Capacity of cylinders4 - 0.23 in³
Engine power (Hp/kW)119.35 Hp / 89 kW
Max. torque / Engine rotation354 ft/lbs @ 1600 rpm
Transmission
Transmission typeTorque converter with powershift gearbox
Number of gears (forward / reverse)3 / 3
Max. travel speed20 mph
Parking brakeHydraulic spring release SAHR
Service brakeWet disc brakes
Axle ManufacturerDana
Hydraulics
Hydraulic pump typeGear pump
Hydraulic flow / Pressure41 US gpm-3002 PSI
Tank capacities
Engine oil4 US gal
Hydraulic oil45 US gal
Diesel Exhaust fluid (AdBlue® type)5 US Gal
Fuel tank47 US gal
Miscellaneous
Steering wheels (front / rear)2 / 2
Drive wheels (front / rear)2 / 2
Cab certificationROPS/FOPS
ControlsSingle Joystick FNR
MTA 6642 SERIES IV Features & Benefits

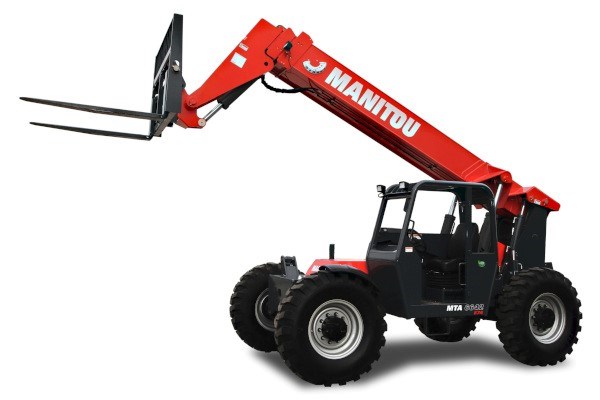

Are you after a reliable, durable telehandler for your projects? Then the Manitou MTA 6642 is exactly what you need. It's a simple, robust and compact telehandler, capable of lifting and placing loads of up to 3 t. With a maximum lifting height of 12.8 m, this machine will quickly prove cost effective by clearing up sites faster and more safely than before. And with its incredible versatility thanks to the various compatible attachments available, you can easily handle all manner of loads: pallets, bulks, concrete, structures, materials and more!
