Max. capacity:  8000 lb
Max. lifting height:  42 ft 6 in
Maximum outreach:  28 ft 6 in
Engine power (kW):  95 kW

  • Get a Quote Payment Calculator

    • Get information on the MTA 842

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

MTA 842 Specs & Compare
Download PDF
Capacities
Max. capacity8000 lb
Max. lifting height42 ft 6 in
Maximum outreach28 ft 6 in
Weight and dimensions
Length to face of forks20 ft 8 in
Overall length (with forks)24 ft 8 in
Overall width8 ft 2 in
Overall height8 ft
Wheelbase11 ft 6 in
Ground clearance1 ft 6 in
Overall cab width3 ft 1 in
Tilt-up angle34 °
Tilt-down angle96 °
External turning radius13 ft 1 in
Overall weight23951 lb
Tires typePneumatic
Forks length / width / section48 in x 4 in x 2 in
Frame leveling corrector10 °
Performances
Lifting11 s
Lowering6 s
Extension17 s
Retraction11 s
Crowd4 s
Dump6 s
Engine
Engine brandDeutz
Engine normTier 4 final
Engine modelTCD 3.6 L4
Number of cylinders / Capacity of cylinders4 - 220 in³
Engine power (Hp/kW)127 Hp / 95 kW
Max. torque / Engine rotation369 ft/lbs @ 2300 rpm
Drawbar pull11113 kgF
Transmission
Transmission typePowershift
Number of gears (forward / reverse)5 / 3
Max. travel speed21 mph
Parking brakeHydraulic spring release SAHR
Service brakeWet disc brakes
Hydraulics
Hydraulic pump typeAxial piston
Hydraulic flow / Pressure40 US gpm-4000 PSI

Engine oil2 US gal
Hydraulic oil36 US gal
Diesel Exhaust fluid (AdBlue® type)4 US gal
Fuel tank38 US gal
Noise and vibration
Noise at driving position (LpA)80 dB
Miscellaneous
Steering wheels (front / rear)2 / 2
Drive wheels (front / rear)2 / 2
MTA 842 Features & Benefits

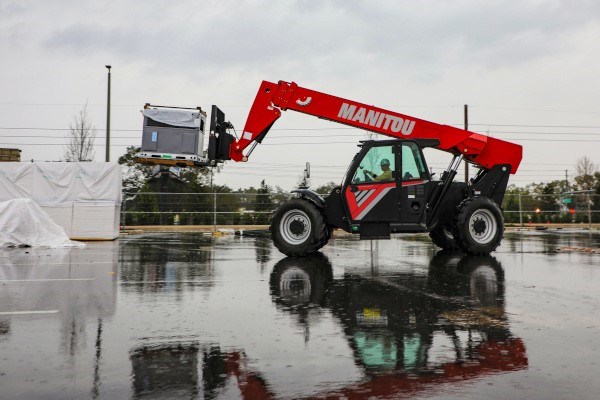

The new MTA Serie is designed to meet the needs of North American construction markets and rental sectors.

The MTA 842 offers great performance with 127 HP Deutz engine, 5 speed powershift transmission with lift up to 42' 6" (12.96 m) and reach to 28' 6" (8.68 m) in a 8,000 lbs. (3,629 kg) telescopic handler.

The new design also offers better visibility, comfort, performance, and a reduced total cost of ownership.

  • New cabin design for more comfort and visibility
  • Enhanced performance from combined hydraulic movements
  • Better TCO with robust, high quality components
