Max. capacity:  8999 lb
Max. lifting height:  50 ft 2 in
Maximum outreach:  36 ft 5 in
Engine power (kW):  89 kW

  • Get a Quote Payment Calculator

    • Get information on the MTA 9050 Series IV

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

MTA 9050 Series IV Specs & Compare
Download PDF
Capacities
Max. capacity8999 lb
Max. lifting height50 ft 2 in
Maximum outreach36 ft 5 in
Weight and dimensions
Overall length to carriage21 ft
Overall width8 ft 4 in
Overall height8 ft 6 in
Wheelbase10 ft 4 in
Ground clearance18 in
Overall cab width33 in
Tilt-up angle12 °
Tilt-down angle112 °
External turning radius13 ft 11 in
Unladen weight (with forks)29899 lb
Standard tires14  x 24
Frame leveling longitudinal +/-10 °
Frame leveling corrector10 °
Performances
Lifting15 s
Lowering10 s
Extension15 s
Retraction12 s
Crowd10 s
Dump5 s
Engine
Engine brandDeutz
Engine normStage IV, Tier 4 final
Engine modelTCD 3.6 L4
Number of cylinders / Capacity of cylinders4 - 0.23 in³
Engine power (Hp/kW)119.35 Hp / 89 kW
Max. torque / Engine rotation354 ft/lbs @ 1600 rpm
Transmission
Transmission typeTorque converter with powershift gearbox
Number of gears (forward / reverse)4 / 3
Max. travel speed19 mph
Parking brakeHydraulic spring release SAHR
Service brakeWet disc brakes
Axle ManufacturerDana
Hydraulics
Hydraulic pump typeGear pump
Hydraulic flow / Pressure41 US gpm-3002 PSI
Tank capacities
Engine oil4 US gal
Hydraulic oil45 US gal
Diesel Exhaust fl uid (AdBlue® type)5 US gal
Fuel tank47 US gal
Miscellaneous
Steering wheels (front / rear)2 / 2
Drive wheels (front / rear)2 / 2
Cab certificationROPS/FOPS
ControlsSingle Joystick FNR
MTA 9050 Series IV Features & Benefits

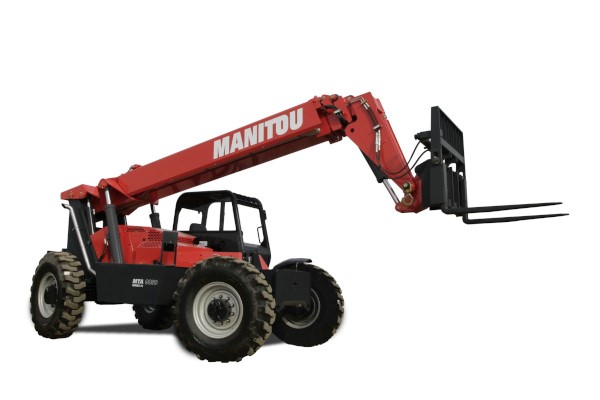

The MTA 9050 Series IV telehandler is ideal for handling heavy or bulky loads whatever the ground conditions (hilly terrain, muddy, irregular). Offering a panoramic 360 degree view from the cab, it allows you to work in comfort, speed and accuracy. The MTA model 9050 Series IV offers a load capacity of 4082 kg and a lift height of 15.3 meters. Make all your pick and carry movements without having to change machines thanks to the many attachments for our construction telehandlers.
