M 30-2 D ST5 Specs & Compare
Download PDF
Technical characteristics
Manufacturer MANITOU
Model Name M 30-2 D ST5
Power source Diesel
Operator type Seated
Max. capacity 6614 lb
Load center of gravity 20 in
Load distance, centre of drive axle to fork 29 in
Wheelbase 79 in
Weight
Service weight 12996 lb
Weight on front axle (laden) / rear axle (laden) 16513 lb / 3097 lb
Weight on front axle (Unladen) / rear axle (Unladen) 4751 lb / 8245 lb
Wheels
Tires type Pneumatic
Dimensions of front wheels 14,5R20 18PR MPT80
Dimensions of rear wheels 10R17,5 G291 GY
Number of front wheels / rear wheels 2 / 2
Number of drive wheels 2
Front wheel gauge 61 in
Rear wheel gauge 65 in
Dimensions
Height of overhead guard (cabin) 96 in
Seat height/stand height 56 in
Overall length 185 in
Length to face of forks 138 in
Overall width 76 in
Forks section x width x length 2 in x 5 in / 47 in
Fork carriage ISO 2328 (class/form) A/B 3A
Fork carriage width 58 in
Ground clearance below mast 16 in
Ground clearance at centre of wheelbase 15 in
Aisle width for 1000 x 1200 pallet widthways 211 in
Aisle width for 800 x 1200 pallet lengthways 211 in
Turning radius 127 in
Performances
Travel speed (laden / unladen) 14 mph / 14 mph
Lifting speed (laden / unladen) 2 ft/s / 2 ft/s
Lowering speed (laden / unladen) 1 ft/s / 1 ft/s
Drawbar pull (Laden) 5600 daN
Gradeability (laden) 62 %
Service brake Hydraulic
Engine
I.C. Engine power rating 55 kW
Engine brand / model Deutz / TCD 2,9
Rated speed 2300 rpm
Number of cylinders / Capacity of cylinders 4 - 178 in³
Miscellaneous
Working hydraulic pressure for attachments 2683 PSI
Oil flow rate for attachments 26 US gpm
Sound level at the driver's ear according to DIN 12 053 78 dB
M 30-2 D ST5 Features & Benefits

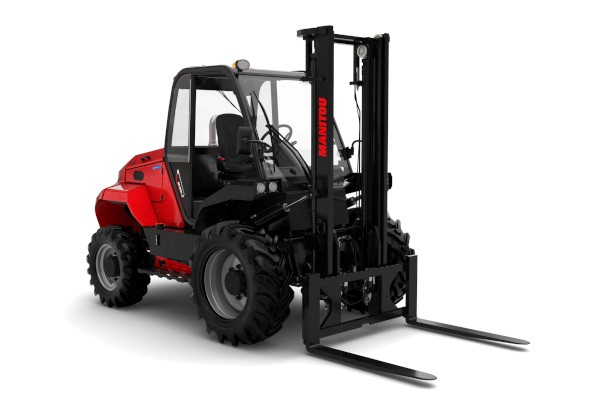

The M 30-2 rough-terrain forklift is designed for sectors of activity operating under demanding conditions (construction, wood industry, events, mining...). A true rough-terrain forklift, equipped with a ground clearance of 37 cm which gives it an excellent crossing capacity. Its width and wheelbase optimize the stability of the machine. The masts available on this truck are designed to operate in a difficult environment or with long loads, and they are robust and easy to use. Equipped with a torque converter transmission, the M 30-2 offers 4 speeds to allow you to do your work efficiently.
