Technical characteristics | |
Manufacturer | MANITOU |
Model Name | M 30-4 D ST5 |
Power source | Diesel |
Operator type | Seated |
Max. capacity | 6614 lb |
Load center of gravity | 20 in |
Load distance, centre of drive axle to fork | 29 in |
Wheelbase | 79 in |
Weight | |
Service weight | 13151 lb |
Weight on front axle (laden) / rear axle (laden) | 16513 lb / 3252 lb |
Weight on front axle (Unladen) / rear axle (Unladen) | 4751 lb / 8400 lb |
Wheels | |
Tires type | Pneumatic |
Dimensions of front wheels | 405/70-20 149B 1323 |
Dimensions of rear wheels | 10,5-18 12PR 1317 |
Number of front wheels / rear wheels | 2 / 2 |
Number of drive wheels | 4 |
Front wheel gauge | 60 in |
Rear wheel gauge | 64 in |
Dimensions | |
Height of overhead guard (cabin) / Overall height of low overhead guard (Buggie version) | 97 in / 97 in |
Seat height/stand height | 56 in |
Overall length | 185 in |
Length to face of forks | 138 in |
Overall width | 76 in |
Forks section x width x length | 2 in x 5 in / 47 in |
Fork carriage ISO 2328 (class/form) A/B | 3A |
Fork carriage width | 58 in |
Ground clearance below mast | 16 in |
Ground clearance at centre of wheelbase | 16 in |
Aisle width for 1000 x 1200 pallet widthways | 243 in |
Aisle width for 800 x 1200 pallet lengthways | 243 in |
Turning radius | 159 in |
Performances | |
Travel speed (laden / unladen) | 6 mph / 14 mph |
Lifting speed (laden / unladen) | 2 ft/s / 2 ft/s |
Lowering speed (laden / unladen) | 1 ft/s / 1 ft/s |
Drawbar pull (Laden / Unladen) | 6290 daN / 4250 daN |
Service brake | Hydraulic |
Engine | |
I.C. Engine power rating | 55 kW |
Engine brand / model / norm | Deutz / TCD 2,9 / Stage V |
Rated speed | 2300 rpm |
Number of cylinders / Capacity of cylinders | 4 - 178 in³ |
Miscellaneous | |
Working hydraulic pressure for attachments | 2683 PSI |
Oil flow rate for attachments | 26 US gpm |
Sound level at the driver's ear according to DIN 12 053 | 78 dB |

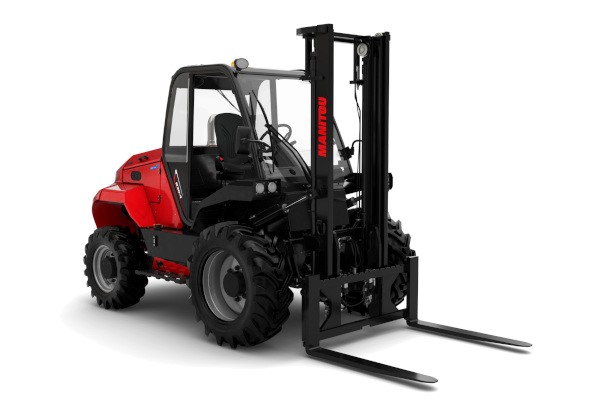

The M 30-4 is the ideal truck for extreme handling conditions. Quarries, mining operations, construction sites, wood industry are all activities for which this truck is extremely efficient. The Manitou masts offer excellent robustness on rough-terrain conditions, they lift up to 6.5 m. For a better performance, a wide choice of tires is available on this truck, you can adapt to all situations.
