Technical characteristics | |
Manufacturer | MANITOU |
Model Name | M 50-4 D ST5 |
Power source | Diesel |
Operator type | Seated |
Max. capacity | 11023 lb |
Load center of gravity | 24 in |
Load distance, centre of drive axle to fork | 30 in |
Wheelbase | 83 in |
Weight | |
Service weight | 18353 lb |
Weight on front axle (laden) / rear axle (laden) | 25397 lb / 3979 lb |
Weight on front axle (Unladen) / rear axle (Unladen) | 7242 lb / 11111 lb |
Wheels | |
Tires type | Pneumatic |
Dimensions of front wheels | 18-22,5 MPT-06 |
Dimensions of rear wheels | 340/80 R18 XMCL |
Number of front wheels / rear wheels | 2 / 2 |
Number of drive wheels | 4 |
Front wheel gauge | 64 in |
Rear wheel gauge | 69 in |
Dimensions | |
Height of overhead guard (cabin) / Overall height of low overhead guard (Buggie version) | 98 in / 98 in |
Seat height/stand height | 57 in |
Overall length | 195 in |
Length to face of forks | 148 in |
Overall width | 82 in |
Forks section x width x length | 2 in x 6 in / 47 in |
Fork carriage ISO 2328 (class/form) A/B | 4A |
Fork carriage width | 66 in |
Ground clearance below mast | 12 in |
Ground clearance at centre of wheelbase | 17 in |
Aisle width for 1000 x 1200 pallet widthways | 268 in |
Aisle width for 800 x 1200 pallet lengthways | 268 in |
Turning radius | 183 in |
Performances | |
Travel speed (laden / unladen) | 6 mph / 14 mph |
Lifting speed (laden / unladen) | 1 ft/s / 1 ft/s |
Lowering speed (laden / unladen) | 2 ft/s / 1 ft/s |
Drawbar pull (Laden) | 11000 daN |
Service brake | Hydraulic |
Engine | |
I.C. Engine power rating | 55 kW |
Engine brand / model / norm | Deutz / TCD 2,9 / Stage V |
Rated speed | 2300 rpm |
Number of cylinders / Capacity of cylinders | 4 - 178 in³ |
Miscellaneous | |
Working hydraulic pressure for attachments | 3336 PSI |
Oil flow rate for attachments | 26 US gpm |
Sound level at the driver's ear according to DIN 12 053 | 78 dB |

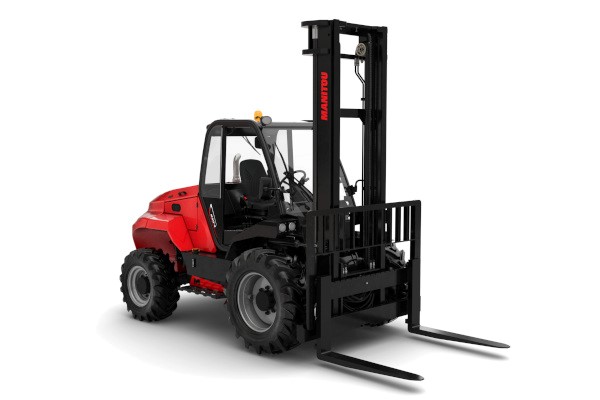

The M 50-4 rough-terrain forklift is designed for activities on difficult terrain or with obstacles. With 4 drive wheels and a ground clearance of 43 cm, this truck offers good manoeuvrability in all circumstances. To allow you to adapt to every ground context, you benefit from a choice of tires to optimize your productivity. Accessible from both sides, the suspended cab offers a spacious driving position with ergonomic controls. The high driving position offers a 360° panoramic vision for enhanced safety of the operator and his environment.
