Max. lifting height: 217 in Max. capacity: 5512 lb Turning radius: 11171 ft 3 in Load center of gravity: 20 in
  • Get a Quote Payment Calculator

    • Get information on the MC 25-4 ST5

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

MC 25-4 ST5 Specs & Compare
Download PDF
Technical characteristics
Manufacturer Manitou
Model Name MC 25-4 ST5
Power source Diesel
Operator type Seated
Max. capacity 5512 lb
Load center of gravity 20 in
Load distance, centre of drive axle to fork 24 in
Wheelbase 75 in
Weight
Standard mast reference of the machine FVD 33
Service weight 9458 lb
Weight on front axle (laden) / rear axle (laden) 13162 lb / 1808 lb
Weight on front axle (Unladen) / rear axle (Unladen) 3924 lb / 5534 lb
Wheels
Tires type Pneumatic
Dimensions of front wheels 12,5/80-18/12 SL R4
Dimensions of rear wheels 27x10-12 SKS
Number of front wheels / rear wheels 2 / 2
Number of drive wheels 4
Front wheel gauge 46 in
Rear wheel gauge 46 in
Dimensions
Height of overhead guard (cabin) / Overall height of low overhead guard (Buggie version) 85 in / 78 in
Seat height/stand height 43 in
Overall length 165 in
Length to face of forks 120 in
Overall width 57 in
Forks section x width x length 2 in x 4 in / 47 in
Fork carriage ISO 2328 (class/form) A/B 2A
Fork carriage width 50 in
Ground clearance below mast 12 in
Ground clearance at centre of wheelbase 12 in
Turning radius 11171 ft 3 in
Performances
Travel speed (laden / unladen) 7 mph / 15 mph
Lifting speed (laden / unladen) 2 ft/s / 2 ft/s
Lowering speed (laden / unladen) 2 ft/s / 0.98 ft/s
Drawbar pull (Laden) 3100 daN
Gradeability (laden) 51 %
Service brake Hydraulic brakes by loss of pressure
Engine
I.C. Engine power rating 37 kW
Engine brand / model / norm Kubota / D1803 CRT E5B / Stage V
Rated speed 2700 rpm
Number of cylinders / Capacity of cylinders 3 - 111 in³
Miscellaneous
Type of drive control Electronic
Working hydraulic pressure for attachments 2901 PSI
Oil flow rate for attachments 11 US gpm
MC 25-4 ST5 Features & Benefits

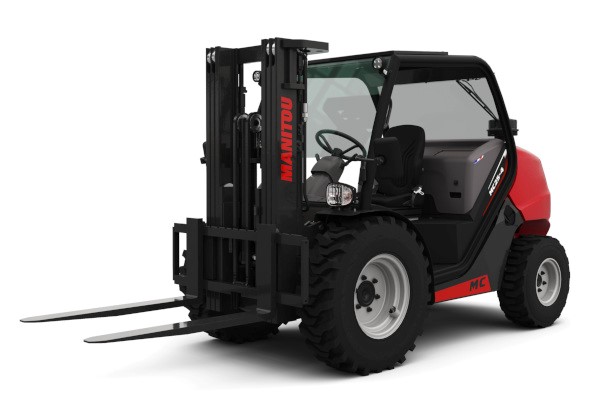

Discover the performance of the MC 25-4 Manitou, the world's best-selling compact all-terrain forklift. Offering an excellent crossing capacity, this particularly compact model is the machine you need to handle heavy loads (up to 2500 kg), even in the most confined areas of your operation or construction site. Its buggy version and its free lift triplex mast allow an overall height of less than 2m to work in basements and containers. The MC trucks designed by Manitou have a large ground clearance, an oscillating rear axle and a mast directly attached to the chassis. Optimize your transport and loading operations whatever your environment!
