Max. lifting height: 256 in Max. capacity: 3527 lb Turning radius: 61 in Load center of gravity: 20 in
  • Get a Quote Payment Calculator

    • Get information on the ME 316 US

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

ME 316 US Specs & Compare
Download PDF
Technical characteristics
Manufacturer Manitou
Model Name ME 316 US
Power source Electrical
Operator type Seated
Max. capacity 3527 lb
Load center of gravity 20 in
Load distance, centre of drive axle to fork 14 in
Wheelbase 53 in
Weight
Service weight 6878 lb
Weight on front axle (laden) / rear axle (laden) 9039 lb / 1367 lb
Weight on front axle (Unladen) / rear axle (Unladen) 3175 lb / 3704 lb
Wheels
Tires type Solid tires
Dimensions of front wheels 18x7-8
Dimensions of rear wheels 15x4,5-8
Number of front wheels / rear wheels 2 / 1
Number of drive wheels 2
Front wheel gauge 36 in
Rear wheel gauge 7 in
Dimensions
Height of overhead guard (cabin) 80 in
Seat height/stand height 39 in
Height of towing bar (coupling height) 20 in
Overall length 117 in
Length to face of forks 75 in
Overall width 43 in
Forks section / width / length 1 in x 4 in x 42 in
Fork carriage ISO 2328 (class/form) A/B 2A
Fork carriage width 39 in
Ground clearance below mast 4 in
Ground clearance at centre of wheelbase 4 in
Aisle Width for pallets 1000 x 1200 crossways 127 in
Aisle width for 800 x 1200 pallet lengthways 132 in
Turning radius 61 in
Performances
Travel speed (laden / unladen) 10 mph-11 mph
Lifting speed (laden / unladen) 1 ft/s-2 ft/s
Lowering speed (laden / unladen) 2 ft/s-1 ft/s
Drawbar pull (Laden / Unladen) 750 daN / 772 daN
Gradeability (laden / unladen) 16 % / 18 %
Service brake Oil bath
Engine
Number of drive motor / Drive motor rating S2 60 min 2 / 4.50 kW
Lift motor rating at S3 15% 8.60 kW
Battery according to DIN 43531/35/36 A, B, C DIN43531 A
Battery voltage / capacity 48 V / 575 Ah
Energy consumption according to VDI cycle (kW/h) 4.30 kWh
Miscellaneous
Type of drive control Electronic
Working hydraulic pressure for attachments 2611 PSI
Oil flow rate for attachments 9 US gpm
Measured/guaranteed mean noise level at the ear of the operator < 70 dB
Sound level at the driver's ear according to DIN 12 053 70 dB

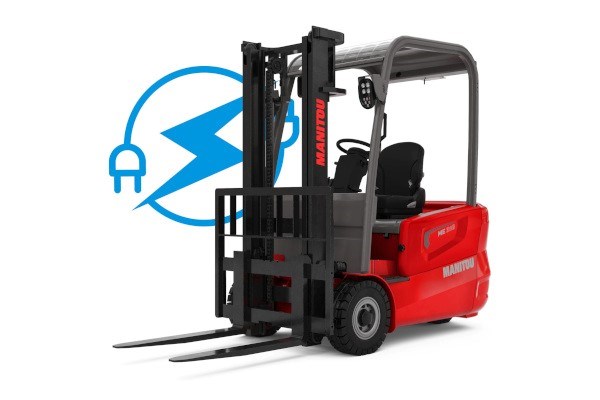

ME 316 US Features & Benefits

Discover the performance of the ME 316 forklift truck. Electric, this machine allows you to carry out all your handling operations. Truck loading / unloading, storage, feeding of production lines, warehousing ... Facilitate the transport of your goods and materials! The ME 316 can lift loads up to 1600 kg. Take advantage of its great versatility in daily use, its compact design and its optimal residual capacities at high heights!
