Max. lifting height: 256 in Max. capacity: 4409 lb Turning radius: 65 in Load center of gravity: 20 in
  • Get a Quote Payment Calculator

    • Get information on the ME 320 US

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

ME 320 US Specs & Compare
Download PDF
Technical characteristics
Manufacturer Manitou
Model Name ME 320 US
Power source Electrical
Operator type Seated
Max. capacity 4409 lb
Load center of gravity 20 in
Load distance, centre of drive axle to fork 14 in
Wheelbase 58 in
Weight
Service weight 7650 lb
Weight on front axle (laden) / rear axle (laden) 10472 lb / 1587 lb
Weight on front axle (Unladen) / rear axle (Unladen) 3373 lb / 4277 lb
Wheels
Tires type Solid tires
Dimensions of front wheels 200/50-10
Dimensions of rear wheels 15x4,5-8
Number of front wheels / rear wheels 2 / 1
Number of drive wheels 2
Front wheel gauge 36 in
Rear wheel gauge 7 in
Dimensions
Height of overhead guard (cabin) 80 in
Seat height/stand height 39 in
Height of towing bar (coupling height) 20 in
Overall length 121 in
Length to face of forks 79 in
Overall width 44 in
Forks section / width / length 2 in x 5 in x 42 in
Fork carriage ISO 2328 (class/form) A/B 2A
Fork carriage width 39 in
Ground clearance below mast 4 in
Ground clearance at centre of wheelbase 4 in
Aisle Width for pallets 1000 x 1200 crossways 132 in
Aisle width for 800 x 1200 pallet lengthways 137 in
Turning radius 65 in
Performances
Travel speed (laden / unladen) 9 mph-9 mph
Lifting speed (laden / unladen) 1 ft/s-1 ft/s
Lowering speed (laden / unladen) 2 ft/s-1 ft/s
Drawbar pull (Laden / Unladen) 900 daN / 930 daN
Gradeability (laden / unladen) 13 % / 15 %
Service brake Oil bath
Engine
Number of drive motor / Drive motor rating S2 60 min 2 / 4.50 kW
Lift motor rating at S3 15% 8.60 kW
Battery according to DIN 43531/35/36 A, B, C DIN43531 A
Battery voltage / capacity 48 V / 690 Ah
Energy consumption according to VDI cycle (kW/h) 4.70 kWh
Miscellaneous
Type of drive control Electronic
Working hydraulic pressure for attachments 2611 PSI
Oil flow rate for attachments 9 US gpm
Measured/guaranteed mean noise level at the ear of the operator < 70 dB
Sound level at the driver's ear according to DIN 12 053 70 dB
ME 320 US Features & Benefits

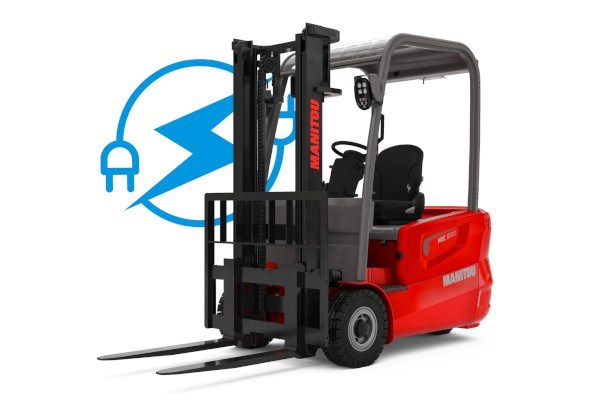

The ME 320 forklift truck was designed to transport loads weighing up to 2000 kg. Electric, easy to handle, it helps you on a daily basis in all your handling operations: truck loading/unloading, storage, production line feeding, logistics application... Take advantage of its robustness and performance to work in optimal safety conditions. The ME 320 also offers an excellent level of comfort in the cab. Get a complete solution, adapted to each business problem!
