Max. lifting height: 256 in Max. capacity: 5512 lb Turning radius: 89 in Load center of gravity: 20 in
  • Get a Quote Payment Calculator

    • Get information on the MI 25 D ST5 US

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

MI 25 D ST5 US Specs & Compare
Download PDF
Technical characteristics
Manufacturer MANITOU
Model Name MI 25 D ST5
Power source Diesel
Operator type Seated
Max. capacity 5512 lb
Load center of gravity 20 in
Load distance, centre of drive axle to fork 18 in
Wheelbase 63 in
Weight
Service weight 8818 lb
Weight on front axle (laden) / rear axle (laden) 12644 lb / 1687 lb
Weight on front axle (Unladen) / rear axle (Unladen) 3770 lb / 5049 lb
Wheels
Tires type Super Elastic
Dimensions of front wheels 7.00-12 12
Dimensions of rear wheels 6.00-9 10
Number of front wheels / rear wheels 2 / 2
Number of drive wheels 2
Front wheel gauge 38 in
Rear wheel gauge 38 in
Dimensions
Height of overhead guard (cabin) 83 in
Seat height/stand height 47 in
Height of towing bar (coupling height) 14 in
Overall length 145 in
Length to face of forks 100 in
Overall width 45 in
Overall width - Single wheels 45 in
Overall width - Twinned wheels 63 in
Forks section / width / length 2 in x 5 in x 45 in
Fork carriage ISO 2328 (class/form) A/B 2A
Fork carriage width 41 in
Ground clearance below mast 5 in
Ground clearance at centre of wheelbase 7 in
Aisle Width for pallets 1000 x 1200 crossways 155 in
Aisle width for 800 x 1200 pallet lengthways 163 in
Turning radius 89 in
Internal turning radius (over tyres) 6 in
Performances
Travel speed (laden / unladen) 11 mph-11 mph
Lifting speed (laden / unladen) 2 ft/s-2 ft/s
Lowering speed (laden / unladen) 2 ft/s-2 ft/s
Drawbar pull (Laden / Unladen) 1940 daN / 1240 daN
Gradeability (laden / unladen) 20 % / 20 %
Service brake Hydraulic
Engine
Engine brand / model Kubota / V2607-CR-E5B
I.C. Engine power rating 37.40 kW
Rated speed 2400 rpm
Number of cylinders / Capacity of cylinders 4 - 160 in³
Miscellaneous
Working hydraulic pressure for attachments 2321 PSI
Oil flow rate for attachments 9 US gpm
Measured/guaranteed mean noise level at the ear of the operator < 84 dB
MI 25 D ST5 US Features & Benefits

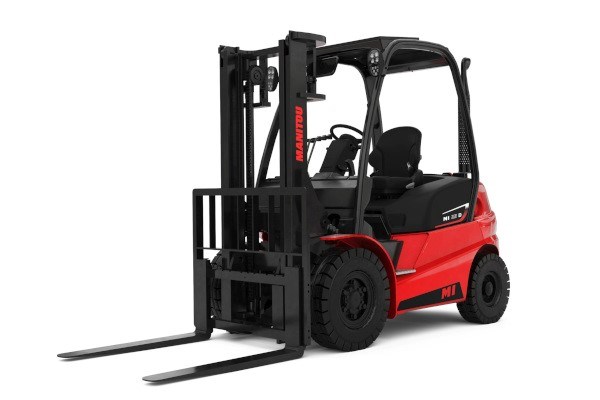

Optimise your handling operations with the MI 25 D forklift. Equipped with a 37 kW diesel engine, this Manitou model has a load capacity of 2500 kg and a lifting height of 6.5 metres (max). Designed with carefully selected components, it will efficiently support you in all your applications. Truck loading/unloading, storing and moving goods... Take advantage of its numerous standard and optional equipment to gain in productivity!
