Technical characteristics | |
Manufacturer | Manitou |
Model Name | MI 25 G |
Power source | Lpg |
Operator type | Seated |
Max. capacity | 5512 lb |
Load center of gravity | 20 in |
Load distance, centre of drive axle to fork | 18 in |
Wheelbase | 63 in |
Weight | |
Standard mast reference of the machine | FVD 33 |
Service weight | 8587 lb |
Weight on front axle (laden) / rear axle (laden) | 12489 lb / 1609 lb |
Weight on front axle (Unladen) / rear axle (Unladen) | 3671 lb / 4916 lb |
Wheels | |
Tires type | Solid tires |
Dimensions of front wheels | 7.00-12 12 |
Dimensions of rear wheels | 6.00-9 10 |
Number of front wheels / rear wheels | 2 / 2 |
Number of drive wheels | 2 |
Front wheel gauge | 38 in |
Rear wheel gauge | 38 in |
Dimensions | |
Height of overhead guard (cabin) | 83 in |
Seat height/stand height | 47 in |
Height of towing bar (coupling height) | 14 in |
Overall length | 145 in |
Length to face of forks | 100 in |
Overall width | 45 in |
Overall width - Single wheels | 45 in |
Forks section / width / length | 2 in x 5 in x 45 in |
Fork carriage ISO 2328 (class/form) A/B | 2A |
Fork carriage width | 41 in |
Ground clearance below mast | 5 in |
Ground clearance at centre of wheelbase | 7 in |
Aisle Width for pallets 1000 x 1200 crossways | 155 in |
Aisle width for 800 x 1200 pallet lengthways | 163 in |
Turning radius | 89 in |
Internal turning radius (over tyres) | 6 in |
Performances | |
Travel speed (laden / unladen) | 12 mph-12 mph |
Lifting speed (laden / unladen) | 2 ft/s-2 ft/s |
Lowering speed (laden / unladen) | 2 ft/s-2 ft/s |
Drawbar pull (Laden / Unladen) | 1700 daN / 1040 daN |
Gradeability (laden / unladen) | 20 % / 20 % |
Service brake | Hydraulic |
Engine | |
Engine brand / model | GCT (ex-Nissan) / K25 |
I.C. Engine power rating | 46 kW |
Rated speed | 2400 rpm |
Number of cylinders / Capacity of cylinders | 4 - 152 in³ |
Miscellaneous | |
Working hydraulic pressure for attachments | 2321 PSI |
Oil flow rate for attachments | 19 US gpm |
Measured/guaranteed mean noise level at the ear of the operator | < 80 dB |
Sound level at the driver's ear according to DIN 12 053 | 80 dB |

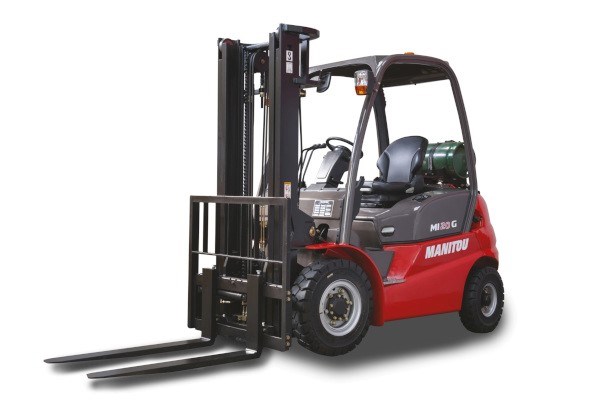

The MI 25 G is an industrial masted forklift designed to meet the needs of forklift operators and fleet managers. Easy to use and maintain, it helps you stay productive and keep your working rhythm up, being designed and built with efficiency and safety in mind.The MI 25 G comes equipped with a Nissan LPG engine, a Powershift transmission and duplex mast as standard equipment. The driver's position is spacious, ergonomic and easily accessible from both sides, with a simplified dashboard. The adjustable steering column and ergonomic controls provide maximum comfort from start to finish.
