MI 30 D ST5 US Specs & Compare
Download PDF
Technical characteristics
Manufacturer MANITOU
Model Name MI 30 D ST5
Power source Diesel
Operator type Seated
Max. capacity 6614 lb
Load center of gravity 20 in
Load distance, centre of drive axle to fork 19 in
Wheelbase 67 in
Weight
Service weight 10163 lb
Weight on front axle (laden) / rear axle (laden) 14661 lb / 2116 lb
Weight on front axle (Unladen) / rear axle (Unladen) 4101 lb / 6063 lb
Wheels
Tires type Super Elastic
Dimensions of front wheels 28-9-15 12
Dimensions of rear wheels 6.50-10 10
Number of front wheels / rear wheels 2 / 2
Number of drive wheels 2
Front wheel gauge 40 in
Rear wheel gauge 38 in
Dimensions
Height of overhead guard (cabin) 84 in
Seat height/stand height 48 in
Height of towing bar (coupling height) 14 in
Overall length 152 in
Length to face of forks 107 in
Overall width 48 in
Overall width - Single wheels 48 in
Overall width - Twinned wheels 68 in
Forks section / width / length 2 in x 5 in x 45 in
Fork carriage ISO 2328 (class/form) A/B 3A
Fork carriage width 43 in
Ground clearance below mast 5 in
Ground clearance at centre of wheelbase 8 in
Aisle Width for pallets 1000 x 1200 crossways 163 in
Aisle width for 800 x 1200 pallet lengthways 171 in
Turning radius 97 in
Internal turning radius (over tyres) 6 in
Performances
Travel speed (laden / unladen) 11 mph-11 mph
Lifting speed (laden / unladen) 2 ft/s-2 ft/s
Lowering speed (laden / unladen) 1 ft/s-2 ft/s
Drawbar pull (Laden / Unladen) 1950 daN / 1380 daN
Gradeability (laden / unladen) 20 % / 20 %
Service brake Hydraulic
Engine
Engine brand / model Kubota / V2607-CR-E5B
I.C. Engine power rating 37.40 kW
Rated speed 2400 Hz
Number of cylinders / Capacity of cylinders 4 - 160 in³
Miscellaneous
Working hydraulic pressure for attachments 2321 PSI
Oil flow rate for attachments 9 US gpm
Measured/guaranteed mean noise level at the ear of the operator < 84 dB

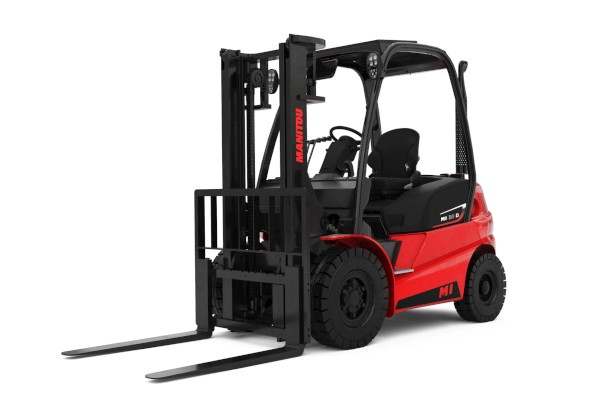

MI 30 D ST5 US Features & Benefits

Discover the advantageous features of the MI 30 D forklift truck! This model is perfectly suited for various applications in the industrial markets, both indoors and outdoors: loading/unloading trucks, transporting goods, warehousing needs, supplying production lines, logistics operations... Carry out your daily tasks with one and the same truck! The MI 30 D offers a maximum load capacity of 3000 kg. Its driving performance, exceptional visibility at height and high lifting speeds will allow you to optimise your logistics flows and your productivity!
