Technical characteristics | |
Manufacturer | Manitou |
Model Name | MI 30 G |
Power source | Lpg |
Operator type | Seated |
Max. capacity | 6614 lb |
Load center of gravity | 20 in |
Load distance, centre of drive axle to fork | 19 in |
Wheelbase | 67 in |
Weight | |
Standard mast reference of the machine | FVD 33 |
Service weight | 9899 lb |
Weight on front axle (laden) / rear axle (laden) | 14462 lb / 2050 lb |
Weight on front axle (Unladen) / rear axle (Unladen) | 3979 lb / 5919 lb |
Wheels | |
Tires type | Solid tires |
Dimensions of front wheels | 28-9-15 12 |
Dimensions of rear wheels | 6.50-10 10 |
Number of front wheels / rear wheels | 2 / 2 |
Number of drive wheels | 2 |
Front wheel gauge | 40 in |
Rear wheel gauge | 38 in |
Dimensions | |
Height of overhead guard (cabin) | 84 in |
Seat height/stand height | 48 in |
Height of towing bar (coupling height) | 14 in |
Overall length | 152 in |
Length to face of forks | 107 in |
Overall width | 48 in |
Overall width - Single wheels | 48 in |
Forks section / width / length | 2 in x 5 in x 45 in |
Fork carriage ISO 2328 (class/form) A/B | 3A |
Fork carriage width | 43 in |
Ground clearance below mast | 5 in |
Ground clearance at centre of wheelbase | 8 in |
Aisle Width for pallets 1000 x 1200 crossways | 163 in |
Aisle width for 800 x 1200 pallet lengthways | 171 in |
Turning radius | 97 in |
Internal turning radius (over tyres) | 6 in |
Performances | |
Travel speed (laden / unladen) | 11 mph-11 mph |
Lifting speed (laden / unladen) | 1 ft/s-2 ft/s |
Lowering speed (laden / unladen) | 2 ft/s-2 ft/s |
Drawbar pull (Laden / Unladen) | 1740 daN / 1080 daN |
Gradeability (laden / unladen) | 20 % / 20 % |
Service brake | Hydraulic |
Engine | |
Engine brand / model | GCT (ex-Nissan) / K25 |
I.C. Engine power rating | 46 kW |
Rated speed | 2400 rpm |
Number of cylinders / Capacity of cylinders | 4 - 152 in³ |
Miscellaneous | |
Working hydraulic pressure for attachments | 2321 PSI |
Oil flow rate for attachments | 19 US gpm |
Measured/guaranteed mean noise level at the ear of the operator | < 80 dB |
Sound level at the driver's ear according to DIN 12 053 | 80 dB |

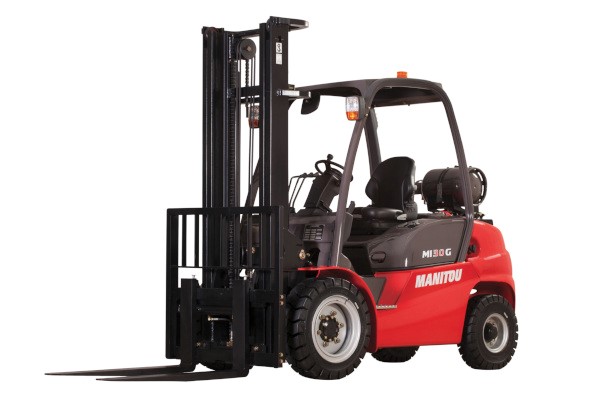

The MI 30 G is a heat engine-powered masted forklift designed for intense industrial application both indoors and outdoors, sure to please both forklift operators and fleet managers with its innovative design. Adjustable and accessible controls, optimal visibility and security systems are just the starting point, with ease of maintenance, robustness and reliability included as standard issue as well.The inching pedal feature provides a smooth and precise approach during manoeuvres, for comfort and flexibility on a daily basis, whilst access to the driver's position is made easier by the low footstep, doors on both sides and a large, sturdy handle grip on the left side.
