Max. lifting height: 256 in Max. capacity: 7716 lb Turning radius: 97 in Load center of gravity: 20 in
  • Get a Quote Payment Calculator

    • Get information on the MI 35 D ST5 US

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

MI 35 D ST5 US Specs & Compare
Download PDF
Technical characteristics
Manufacturer MANITOU
Model Name MI 35 D ST5
Power source Diesel
Operator type Seated
Max. capacity Weight
Service weight 10714 lb
Weight on front axle (laden) / rear axle (laden) 16226 lb / 2205 lb
Weight on front axle (Unladen) / rear axle (Unladen) 4023 lb / 6691 lb
Wheels
Tires type Super Elastic
Dimensions of front wheels 28-9-15 12
Dimensions of rear wheels 6.50-10 10
Number of front wheels / rear wheels 2 / 2
Number of drive wheels 2
Front wheel gauge 40 in
Rear wheel gauge 38 in
Dimensions
Height of overhead guard (cabin) 84 in
Seat height/stand height 48 in
Height of towing bar (coupling height) 14 in
Overall length 155 in
Length to face of forks 110 in
Overall width 48 in
Overall width - Single wheels 48 in
Overall width - Twinned wheels 68 in
Forks section / width / length 2 in x 5 in x 45 in
Fork carriage ISO 2328 (class/form) A/B 3A
Fork carriage width 43 in
Ground clearance below mast 5 in
Ground clearance at centre of wheelbase 8 in
Aisle Width for pallets 1000 x 1200 crossways 165 in
Aisle width for 800 x 1200 pallet lengthways 173 in
Turning radius 97 in
Internal turning radius (over tyres) 6 in
Performances
Travel speed (laden / unladen) 11 mph-11 mph
Lifting speed (laden / unladen) 1 ft/s-1 ft/s
Lowering speed (laden / unladen) 1 ft/s-1 ft/s
Drawbar pull (Laden / Unladen) 2000 daN / 1520 daN
Gradeability (laden / unladen) 18 % / 20 %
Service brake Hydraulic
Engine
Engine brand / model Kubota / V2607-CR-E5B
I.C. Engine power rating 37.40 kW
Rated speed 2400 rpm
Number of cylinders / Capacity of cylinders 4 - 160 in³
Miscellaneous
Working hydraulic pressure for attachments 2321 PSI
Oil flow rate for attachments 9 US gpm
Measured/guaranteed mean noise level at the ear of the operator < 84 dB
MI 35 D ST5 US Features & Benefits

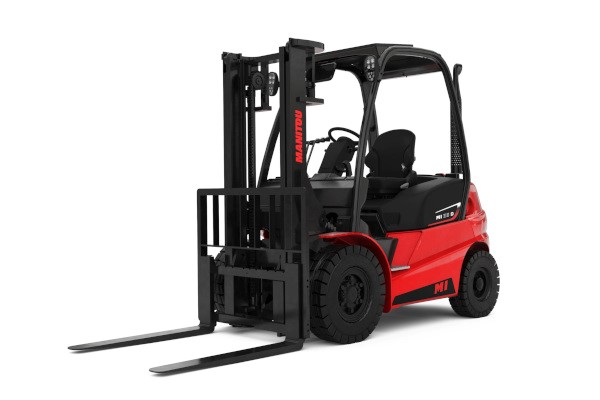

Are you looking for a handling solution that is both compact and capable of moving heavy loads with precision? Discover the performance of the Manitou MI 35 D forklift. Equipped with solid tyres and a powerful 37 kW Kubota diesel engine, our truck meets all your requirements. Move loads of up to 3500 kg and carry out all your operations efficiently, even in narrow aisles of your warehouses, logistics platforms or production sites!
