Max. lifting height:  236 in
Max. capacity:  15432 lb
Turning radius:   131 in
Load center of gravity:  24 in

  • Get a Quote Payment Calculator

    • Get information on the MI 70 G US

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

MI 70 G US Specs & Compare
Download PDF
Technical characteristics
ManufacturerManitou
Model NameMI 70 G
Power sourceLpg
Operator typeSeated
Max. capacity15432 lb
Load center of gravity24 in
Load distance, centre of drive axle to fork24 in
Wheelbase91 in
Weight
Service weight21153 lb
Weight on front axle (laden) / rear axle (laden)32695 lb / 3891 lb
Weight on front axle (Unladen) / rear axle (Unladen)8620 lb / 12533 lb
Wheels
Tires typePneumatic
Dimensions of front wheels8.25-15-14PR
Dimensions of rear wheels8.25-15-14PR
Number of front wheels / rear wheels4 / 2
Number of drive wheels2
Front wheel gauge59 in
Rear wheel gauge67 in
Dimensions
Height of overhead guard (cabin)96 in
Seat height/stand height53 in
Height of towing bar (coupling height)28 in
Overall length189 in
Length to face of forks141 in
Overall width78 in
Overall width - Twinned wheels78 in
Forks section / width / length3 in x 6 in x 48 in
Fork carriage ISO 2328 (class/form) A/B4A
Fork carriage width67 in
Ground clearance below mast7 in
Ground clearance at centre of wheelbase11 in
Aisle Width for pallets 1000 x 1200 crossways207 in
Aisle width for 800 x 1200 pallet lengthways212 in
Turning radius131 in
Internal turning radius (over tyres)48 in
Performances
Travel speed (laden / unladen)17 mph-19 mph
Lifting speed (laden / unladen)1 ft/s-2 ft/s
Lowering speed (laden / unladen)2 ft/s-1 ft/s
Drawbar pull (Laden / Unladen)5900 daN / 2750 daN
Gradeability (laden)27 %
Service brakeHydraulic
Engine
Engine brand / modelPSI / 4,3L
I.C. Engine power rating74 kW
Rated speed2300 rpm
Number of cylinders / Capacity of cylinders6 - 262 in³
Miscellaneous
Working hydraulic pressure for attachments2828 PSI
Oil flow rate for attachments32 US gpm
Measured/guaranteed mean noise level at the ear of the operator< 88 dB
Sound level at the driver's ear according to DIN 12 05388 dB
MI 70 G US Features & Benefits

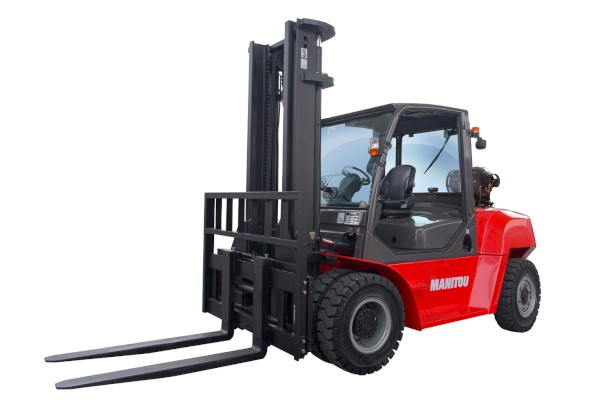

Are you after a handler for both indoor and outdoor applications that's capable of handling loads of up to 7 tonnes? The Manitou MI 70 G was designed to meet the demanding needs of professionals who don't want to compromise on performance, comfort and budget.The intuitive controls make it easy to get up and running whilst the backlit LCD screen and excellent visibility immediately enhance productivity. The MI 70 G is also easy to maintain as mechanics have instant access to internal parts, whilst those on tight budgets will find a lot to like in its robustness and reliability.
