Platform capacity:  507 lb
Number of people (indoor):  2
Indoor and outdoor max Tilt Rating (Fore and Aft):  3.50 °
Gradeability:  25 %

  • Get a Quote Payment Calculator

    • Get information on the SE 1932

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

SE 1932 Specs & Compare
Download PDF
Capacities
Working height25 ft 7 in
Working height maximum (indoor)25 ft 7 in
Working height maximum (outdoor)25 ft 7 in
Platform height maximum (indoor)19 ft
Platform height maximum (outdoor)19 ft
Platform capacity507 lb
Max. capacity on the extension deck254 lb
Number of people (indoor / outdoor)2 / 1
Weight and dimensions
Platform weight*3307 lb
Platform dimensions (length x width)5 ft 5 in x 2 ft 6 in
Platform dimensions with extension (length x width)8 ft 4 in x 2 ft 6 in
Floor height (access)3 ft 4 in
Overall length6 ft 2 in
Overall width2 ft 8 in
Overall height7 ft 1 in
Overall height (stowed)6 ft 6 in
Deck opening length2 ft 11 in
Overall length with platform extension9 ft 1 in
Outside turning radius - platform5 ft 8 in
Internal turning radius0 in
Ground clearance with pothole guards deployed0 in
Ground clearance with pothole guards folded2 in
Wheelbase4 ft 7 in
Performances
Drive speed - stowed3 mph
Drive speed - raised0.50 mph
Raise speed (laden) / Lower speed (laden)17 s / 18 s
Gradeability25 %
Indoor and outdoor max Tilt Rating (Fore and Aft / Side-to-Side)3.50 ° / 1.50 °
Wheels
Tires typeSolid non-marking tires
Standard tires12 x 4 in / 305 x 106 mm
Drive wheels (front / rear)2 / 0
Steering wheels (front / rear)2 / 0
Braking wheels (front / rear)2 / 0
Service brakeElectric
Engine/Battery
Battery technologySemi-traction
Number of batteries / Battery nominal voltage / Battery capacity4 / 6 V / 185 Ah
Battery energy4.40 kW/h
On-board charger (V / A)24 V / 30 A
Miscellaneous
Number of cycles with STD Battery (HIRD)146
Hydraulic Pressure3626 PSI
Hydraulic tank capacity3 US gal
Sound pressure level (platform work station) (LpA)66.60 dB
Vibration on hands/arms< 2 ft/s²
Standards compliance
This machine is in compliance with:ANSI A92.20-2018 CSA B354.6 ICES-002-Issue 6 Standard Canadian EMC
SE 1932 Features & Benefits

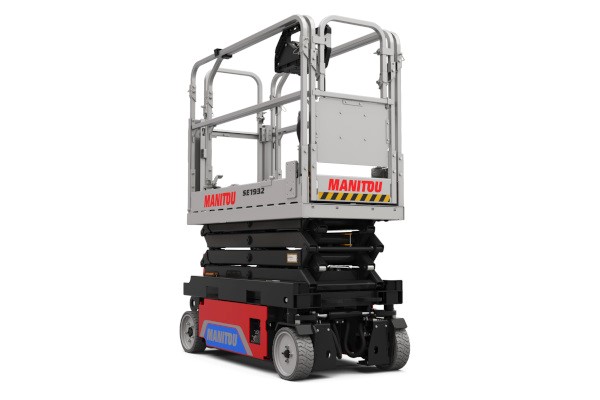

Discover the new SE 1932 electric aerial work platform designed by Manitou. It is part of the SE range, dedicated to the construction, industrial and rental markets.

Main applications include:

  • industrial maintenance (air conditioning, lighting, etc.)
  • finishing work (electrical, plumbing, installation of fire protection systems, etc.)

This compact machine enables you to work safely, quietly and emission-free in hard-to-reach areas, indoors or outdoors.

This electrically-driven model with maintenance-free motors comes as standard with side pockets and a high door for greater operator comfort and safety.
