Platform capacity:  507 lb
Number of people (indoor):  2
Indoor and outdoor max Tilt Rating (Fore and Aft):  3.50 °
Gradeability:  25 %

  • Get a Quote Payment Calculator

    • Get information on the SE 2632

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

SE 2632 Specs & Compare
Download PDF
Capacities
Working height32 ft 9 in
Working height maximum (indoor)32 ft 9 in
Working height maximum (outdoor)29 ft 6 in
Platform height maximum (indoor)26 ft 3 in
Platform height maximum (outdoor)23 ft
Platform capacity507 lb
Max. capacity on the extension deck254 lb
Number of people (indoor / outdoor)2 / 1
Weight and dimensions
Platform weight*4872 lb
Platform dimensions (length x width)7 ft 3 in x 2 ft 7 in
Platform dimensions with extension (length x width)10 ft 2 in x 2 ft 7 in
Floor height (access)4 ft 1 in
Overall length7 ft 11 in
Overall width2 ft 8 in
Overall height7 ft 1 in
Overall height (stowed)6 ft 6 in
Deck opening length2 ft 11 in
Overall length with platform extension10 ft 10 in
Outside turning radius - platform7 ft 1 in
Internal turning radius0 in
Ground clearance with pothole guards deployed1 in
Ground clearance with pothole guards folded3 in
Wheelbase5 ft 9 in
Performances
Drive speed - stowed3 mph
Drive speed - raised0.50 mph
Raise speed (laden) / Lower speed (laden)33 s / 32 s
Gradeability25 %
Indoor and outdoor max Tilt Rating (Fore and Aft / Side-to-Side)3.50 ° / 1.50 °
Wheels
Tires typeSolid non-marking tires
Standard tires15 x 5 in / 381 x 125 mm
Drive wheels (front / rear)2 / 0
Steering wheels (front / rear)2 / 0
Braking wheels (front / rear)2 / 0
Service brakeElectric
Engine/Battery
Battery technologySemi-traction
Number of batteries / Battery nominal voltage / Battery capacity4 / 6 V / 185 Ah
Battery energy4.40 kW/h
On-board charger (V / A)24 V / 30 A
Miscellaneous
Hydraulic Pressure3626 PSI
Hydraulic tank capacity6 US gal
Sound pressure level (platform work station) (LpA)66.60 dB
Vibration on hands/arms< 2 ft/s²
Standards compliance
This machine is in compliance with:ANSI A92.20-2018 CSA B354.6 ICES-002-Issue 6 Standard Canadian EMC
SE 2632 Features & Benefits

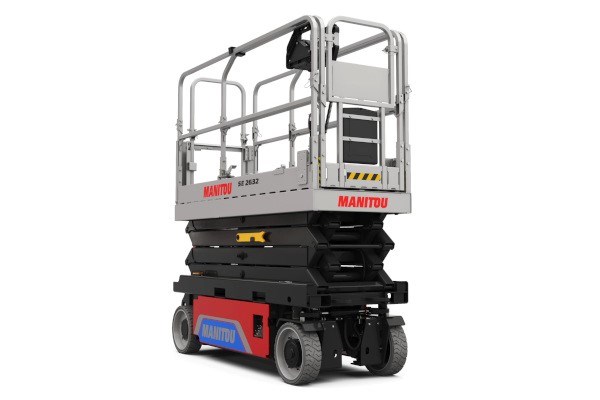

Discover the new SE 2632 electric aerial work platform designed by Manitou. It is part of the SE range, dedicated to the construction, industrial and rental markets.

Main applications include:

  • industrial maintenance (air conditioning, lighting, etc.)
  • finishing work (electrical, plumbing, installation of fire protection systems, etc.)


With a platform height of 26' 2.6", this compact machine enables you to operate safely, quietly and emission-free in hard-to-reach indoor or outdoor areas requiring numerous translations.

This electrically-driven model with maintenance-free motors is fitted as standard with side sheaths and a high-level door for greater operator comfort and safety.
