Maximum outreach:  6 ft 8 in
Platform capacity:  507 lb
Number of people (indoor):  2
Gradeability:  25 %

  • Get a Quote Payment Calculator

    • Get information on the V'Air 23

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

V'Air 23 Specs & Compare
Download PDF
Capacities
Floor height (access)3 ft 5 in
Platform height23 ft
Max. outreach6 ft 8 in
Platform capacity507 lb
Turret rotation355 °
Number of people (indoor / outdoor)2 / 2
Weight and dimensions
Platform weight*5975 lb
Platform dimensions (length x width)3 ft 1 in x 2 ft 3 in
Overall length7 ft 7 in
Overall width3 ft 7 in
Overall height7 ft 7 in
Counterweight offset (turret at 90°)2 in
Counterweight Oversize / Reach2 in
External turning radius6 ft 6 in
Ground clearance at centre of wheelbase2 ft 11 in
Wheelbase3 ft 11 in
Performances
Drive speed - stowed3 mph
Drive speed - raised0.37 mph
Gradeability25 %
Permissible leveling2 °
Wheels
Tires typeNon marking
Standard tires16.5-11 1/4 / 406 x 127 mm
Drive wheels (front / rear)0 / 2
Steering wheels (front / rear)2 / 0
Braking wheels (front / rear)0 / 2
Engine/Battery
Electric engine power rating2 x 1.50 kW
Number of hydraulic pump / Capacity of hydraulic pump2 x 0.26 in³
Battery voltage24 V
Battery capacity250 Ah
On-board charger (V / A)24 V / 30 A
Miscellaneous
Number of cycles with STD Battery (HIRD)39
Ground Pressure164 PSI
Hydraulic Pressure2031 PSI
Hydraulic tank capacity6 US gal
Standards compliance
This machine is in compliance with:ANSI A92.20-2018 CSA B354.6 ICES-002-Issue 6 Standard Canadian EMC
V'Air 23 Features & Benefits

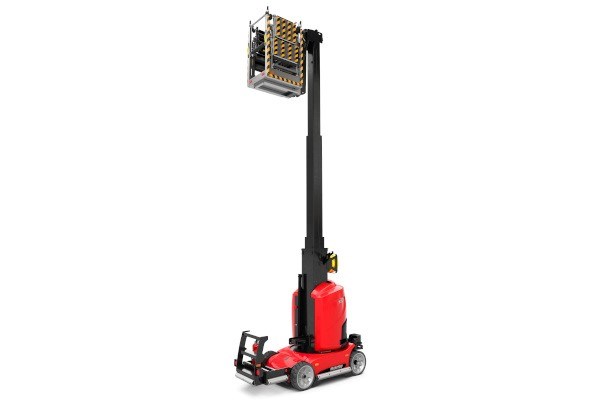

Looking for a handling solution to work at heights in very tight spaces for the aeronautics industry? Check out the performance of the V'Air 23 mast lift! Equipped with a telescopic mast, this model offers a maximum working height of 29 ft 6 in: ideal to operate in the most remote areas safely. The telescopic mast technology provides stronger visibility on the machine and your surroundings during travel, in a very compact package. This aerial platform allows you to perform your maintenance operations with comfort and precision.
