Max. lifting height: 135 in Max. capacity: 5512 lb Max. outreach: 52 in Power source: Diesel
  • Get a Quote Payment Calculator

    • Get information on the TMT 55 HT Y ST5

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

TMT 55 HT Y ST5 Specs & Compare
Download PDF
Technical characteristics
Manufacturer Manitou
Model Name TMT 55 HT Y ST5
Reach out equipment Telescopic boom
Power source Diesel
Operator type Seated
Max. capacity 5512 lb
Load center of gravity 24 in
Load distance, centre of drive axle to fork -20 in
Wheelbase 65 in
Weight
Service weight 6019 lb
Wheels
Tires type Pneumatic
Dimensions of front wheels 31 x 15,5 - 15"
Dimensions of rear wheels 31 x 15,5 - 15"
Number of front wheels / rear wheels 2 / 1
Drive wheels (front / rear) 2 / 1
Front wheel gauge 86 in
Dimensions
Mast/fork carriage tilt, forward 100 °
Mast/fork carriage tilt, backward 12 °
Height telescopic boom lowered 89 in
Mast free lift 57 in
Max. lifting height 135 in
Height telescopic boom extended 155 in
Height of overhead guard (cabin) 93 in
Seat height/stand height 55 in
Overall length 111 in
Length to face of forks 63 in
Overall width 101 in
Forks section / width / length 2 in x 4 in x 48 in
Fork carriage ISO 2328 (class/form) A/B FEM 2A
Fork carriage width 50 in
Distance between support arms 49 in
Distance between wheel arms/loading surfaces 60 in
Max. outreach 52 in
Ground clearance at centre of wheelbase 16 in
Aisle Width for pallets 1000 x 1200 crossways 79 in
Aisle width for 800 x 1200 pallet lengthways 75 in
Turning radius 118 in
Performances
Travel speed (laden / unladen) 7 mph - 7 mph
Lifting speed (laden / unladen) 0.82 ft/s / 0.89 ft/s
Lowering speed (laden / unladen) 0.95 ft/s / 1 ft/s
Acceleration time (laden / unladen) 4 s / 3.50 s
Service brake Hydraulic brakes by loss of pressure
Engine
Engine brand / norm Yanmar - Stage V
I.C. Engine power rating 31 kW
Rated speed 2800 rpm
Number of cylinders / Capacity of cylinders 3 - 96 in³
Fuel consumption according to VDI cycle 1 US gph
Miscellaneous
Type of drive control Mechanical
Working hydraulic pressure for attachments 3916 PSI
Oil flow rate for attachments 12 US gpm
Measured/guaranteed mean noise level at the ear of the operator 104 dB
TMT 55 HT Y ST5 Features & Benefits

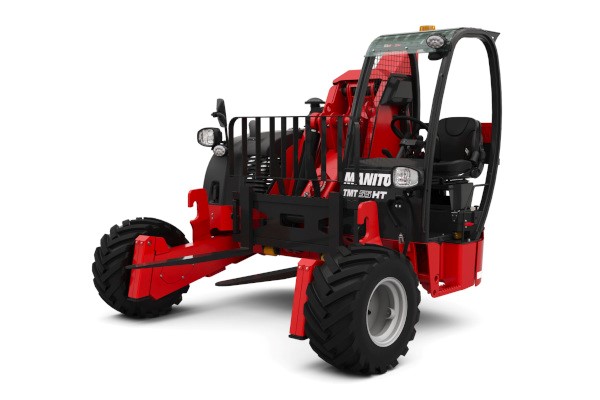

The TMT 55 HT truck-mounted forklift is designed for logistics professionals to deliver shipments to customers who do not have paved road access on their sites or who do not have a unloading bay. The robustly designed telescopic boom, engine power, and intelligent load chart allow you to load and unload lorries from a single side. Incredibly compact and with minimum payload, it is greatly appreciated by users for its ease of use. It also features improved traction unmatched visibility to clear entrances as as 96.5 inches (2.45m) high while carrying a fuel load of materials.
