TMT 55 XT 4W Y ST5 Specs & Compare
Download PDF
Technical characteristics
Manufacturer Manitou
Model Name TMT 55 XT 4W Y ST5
Reach out equipment Telescopic boom
Power source Diesel
Operator type Seated
Max. capacity 5512 lb
Load center of gravity 24 in
Load distance, centre of drive axle to fork -20 in
Wheelbase 65 in
Weight
Service weight 6415 lb
Wheels
Tires type Pneumatic
Dimensions of front wheels 10x16,5
Dimensions of rear wheels 31x15,5-15
Number of front wheels / rear wheels 2 / 1
Drive wheels (front / rear) 2 / 1
Front wheel gauge 86 in
Dimensions
Mast/fork carriage tilt, forward 100 °
Mast/fork carriage tilt, backward 12 °
Height telescopic boom lowered 89 in
Mast free lift 57 in
Max. lifting height 134 in
Height telescopic boom extended 154 in
Height of overhead guard (cabin) 93 in
Seat height/stand height 55 in
Overall length 111 in
Length to face of forks 63 in
Overall width 97 in
Forks section / width / length 2 in x 4 in x 48 in
Fork carriage ISO 2328 (class/form) A/B FEM 2A
Fork carriage width 50 in
Distance between support arms 49 in
Distance between wheel arms/loading surfaces 60 in
Ground clearance at centre of wheelbase 11 in
Aisle Width for pallets 1000 x 1200 crossways 79 in
Aisle width for 800 x 1200 pallet lengthways 77 in
Turning radius 117 in
Performances
Lifting speed (laden / unladen) 0.82 ft/s / 0.89 ft/s
Lowering speed (laden / unladen) 0.95 ft/s / 1 ft/s
Service brake Hydraulic brakes by loss of pressure
Engine
Engine brand / norm Yanmar - Stage V
I.C. Engine power rating 31 kW
Rated speed 2800 rpm
Number of cylinders / Capacity of cylinders 3 - 96 in³
Miscellaneous
Type of drive control Mechanical
Working hydraulic pressure for attachments 3916 PSI
Oil flow rate for attachments 12 US gpm
Measured/guaranteed mean noise level at the ear of the operator 105 dB
TMT 55 XT 4W Y ST5 Features & Benefits

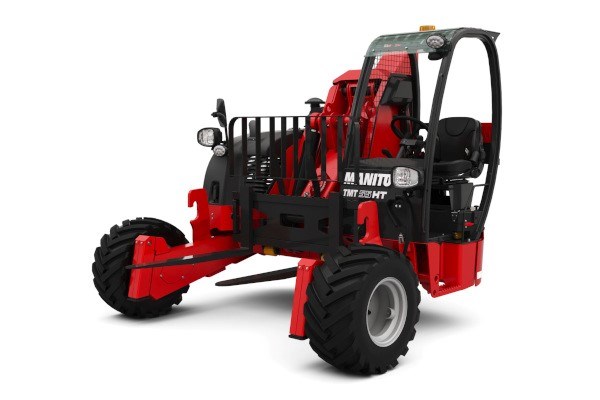

The TMT 55 XT 4W truck-mounted forklift is designed for single-side loading for logistics professionals, particularly those working in the construction sector. It enables you to deliver materials to customers who don't have loading/unloading bays, or with sites not accessible by paved roads. The bi-directional mode means you can move the forklift sideways, which is useful when you have to park the lorry on the side of the road or alongside a wall or other lorry. Designed to last, the TMT 55 XT 4W is built using robust components, for maximum cost effectiveness and minimum payload.
