Max. capacity:  3858 lb
Load center of gravity:  20 in
Max. lifting height:  416 in
Overall width:  49 in

  • Get a Quote Payment Calculator

    • Get information on the EMA II 18 HL-1

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

EMA II 18 HL-1 Specs & Compare
Download PDF
Technical characteristics
ManufacturerManitou
Model NameEMA II 18 HL-1
Power sourceElectrical - Lead
Operator typeSeated
Max. capacity3858 lb
Max. capacity3858 lb
Load center of gravity20 in
Load distance, centre of drive axle to fork12 in
Wheelbase69 in
Weight
Service weight15212 lb
Weight on front axle (laden) / rear axle (laden)9259 lb / 9921 lb
Weight on front axle (Unladen) / rear axle (Unladen)4850 lb / 10362 lb
Wheels
Tires typeSolid tires
Dimensions of front wheels412 x 178
Dimensions of rear wheels457 x 178
Number of front wheels / rear wheels2 / 2
Number of drive wheels
2
Front wheel gauge44 in
Rear wheel gauge49 in
Dimensions
Height of overhead guard (cabin)89 in
Seat height/stand height47 in
Overall length147 in
Length to face of forks102 in
Overall width49 in
Forks section / width / length2 in x 5 in x 45 in
Fork carriage ISO 2328 (class/form) A/B2
Fork carriage width34 in
Ground clearance below mast2 in
Ground clearance at centre of wheelbase5 in
Aisle Width for pallets 1000 x 1200 crossways77 in
Aisle width for 800 x 1200 pallet lengthways87 in
Performances
Travel speed (laden / unladen)6 mph / 6 mph
Lifting speed (laden / unladen)1 ft/s-1 ft/s
Lowering speed (laden / unladen)1 ft/s-1 ft/s
Gradeability (laden / unladen)8 % / 10.50 %
Service brakeHydraulic
Engine
Drive motor rating S2 60 min10 kW
Lift motor rating at S3 15%
9 kW
Battery according to DIN 43531/35/36 A, B, CDIN 43595
Battery voltage / capacity48 V / 775 Ah
Battery weight (+/- 5%)3164 lb
Miscellaneous
Type of drive controlMosfet AC speed controller
Working hydraulic pressure for attachments2901 PSI
Oil flow rate for attachments7 US gpm
Measured/guaranteed mean noise level at the ear of the operator< 73 dB
Sound level at the driver's ear according to DIN 12 05373 dB
EMA II 18 HL-1 Features & Benefits

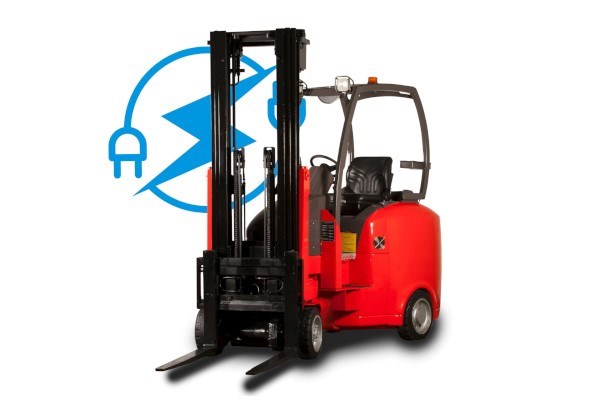

The EMA II 18 HL-1 is an articulated forklift designed for use in warehouses looking to store goods at height. It has an excellent maximum lift of 11 m for optimum use of storage space, and is also suited to outdoor handling tasks with its high quality soft rubber tyres and generous ground clearance, so you can save time and money by not having to worry about double handling.The EMA II 18 HL-1 also shows efficiency and operator safety go hand-in-hand, as the overhead guard is supported by 4 uprights and also features a tilting apron for maximum safety when handling loads at greater heights.
