Clear small trees, brush, and access hard to reach areas for a maintained finish.

  • Get a Quote Payment Calculator

    • Get information on the XBC60

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

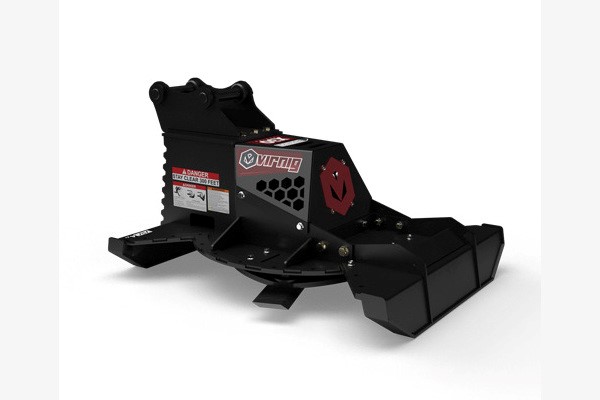

XBC60 Specs & Compare
Download PDF
MODELXBC60
Cut Width (Inches)60
Overall Width Without Sides / With Sides (Inches)71.5 / 72.7
Height: Overall / Deck (Inches)23.2 / 6.1
Overall Depth (Inches)75.5
Minimum Cut Height (Inches)2.3
Cutting Capacity, Diameter (Inches)6
Deck Thickness: Top / Side (Inches)0.25
Recommended Flow Rate (GPM)20-28 / 28-35 / 35-38
Max Operating Pressure (PSI)3500 / 4100¹
Approximate Weight No Sides / Both Sides (Pounds)1050² / 1250²
[Optional] Carbide Teeth: Weight (Pounds) / Qty12/18
Approximate Operating WeightCutter + Hanger + Options³
Mini-Ex's Lowest Lift Capacity Over Side at Max ReachMust Exceed Cutter Operating Weight⁴
Recommended Mini-Excavator Weight (Pounds)15000-26000

¹4100 PSI max pressure only applies to 28-35 and 35-38 GPM flow ranges.
²Weight doesn’t include hanger bracket or tooth option.
³Add weight of cutter, hanger and options to determine operating weight. Hangers typically weigh between 80 and 150 pounds.
⁴Excavator’s lowest lift capacity of any blade and boom orientation must exceed cutter operating weight. Excavator lift capacities vary based on arm length, counterweight and open vs closed cab. Ensure the excavator configuration in the manufacturer’s specs matches your machine’s exact setup.

BLADE TIP SPEEDS (FPM)

Standard Flow Model

MODEL15 GPM22 GPM25 GPM28 GPM
XBC42-259,52513,97015,875-
XBC42-28-9,01010,24011,470
XBC48-2210,88515,965--
XBC48-28-10,30011,70513,110
XBC60-28-12,87514,63516,385


MODEL28 GPM Minimum35 GPM Maximum
XBC48-3510,29012,860
XBC60-3512,78015,975


MODEL35 GPM Minimum38 GPM Maximum
XBC48-3810,26511,143
XBC60-3812,83013,930

Flow rates in gallons per minute (GPM) and blade tip speeds in feet per minute (FPM).

XBC60 Features & Benefits
  • NO CASE DRAIN REQUIRED. DIRECT DRIVE EATON® MOTOR WITH RELIEF VALVE PROTECTION
  • 42″ & 48″ MODELS FEATURE UNIQUE BOLT-ON FRONT DECK. REMOVE FOR 270-DEGREE BLADE ENGAGEMENT
  • BOLT-ON MOUNTING INTERFACE FOR QUICKLY CHANGING HANGER BRACKETS
  • ROUNDED FLYWHEEL WITH 3 DOUBLE-SIDED BLADES BOUNCES OFF STUMPS
  • SERRATED REAR DECK FOR BACK DRAGGING BRUSH & GRUBBING STUMPS
  • STANDARD MOTOR GUARD & SPINDLE GUARD
  • VARIOUS HANGER BRACKETS AVAILABLE TO FIT MOST EXCAVATOR BRANDS
  • RETROFIT HYDRAULIC BRAKE KIT AVAILABLE FOR MOST 42″ & 48″ XBC CUTTERS TO REDUCE OPERATOR WAIT TIME BY STOPPING BLADE ROTATION IN LESS THAN 15 SECONDS
