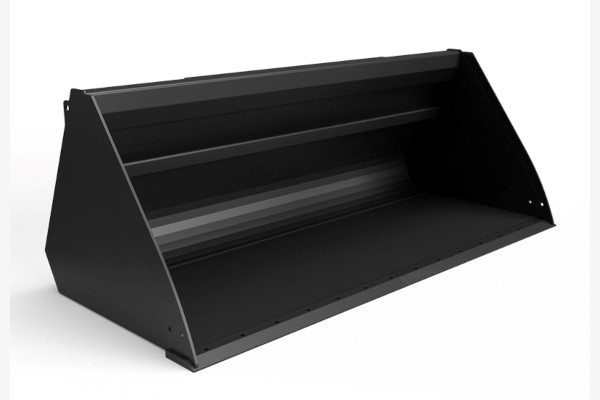

Designed taller and deeper than V70 General Purpose Bucket for 15% more capacity.

  • Get a Quote Payment Calculator

    • Get information on the WHC78

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

WHC78 Specs & Compare
Download PDF
MODELSWHC78
Width: Overall / Inside (Inches)79.5 / 77.3
Overall Height (Inches)32.1
Depth: Overall / Inside (Inches)40.8 / 36.5
Struck Capacity (Cubic Feet / Cubic Yard)29.3 / 1.08
Heaped Capacity (Cubic Feet / Cubic Yard)35.2 / 1.30
Bucket Back Angle (Degrees)65
Shell Thickness (Inches)0.25
Side Plate Thickness (Inches)0.25
Structural Wear Bars Under Bucket (1/2″ x 4″)5
Approximate Weight (Pounds)990
Recommended Loader CapacityGreater than 1800 pounds
WHC78 Features & Benefits
  • FLAT TOP HELPS OPERATORS GAUGE WHEN BUCKET IS LEVEL
  • CURVED INSIDE FOR EASIER MATERIAL CLEANOUT
  • 1/4” THICK SHELL & SIDE PLATES
  • 1″ x 6″ WELD-ON EDGE
  • 1/2″ x 4″ WEAR BARS PROTECT THE BUCKET BOTTOM
