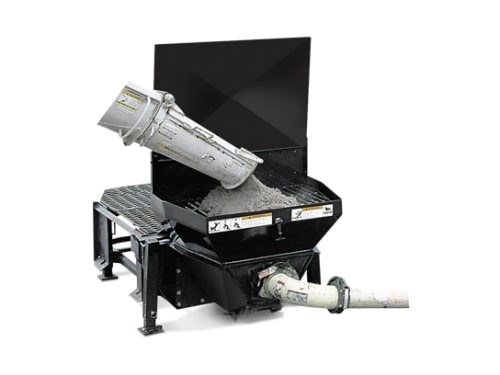

Concrete Pump
Concrete Pump Concrete Pump Concrete Pump Concrete Pump Concrete Pump Concrete Pump

Concrete Pump

  • Simplifies concrete pouring in hard-to-reach locations
  • Pumps concrete as far as 250 feet horizontally and up to two stories vertically
  • Place up to 18 cubic yards of concrete per hour with a standard, hydraulic-flow loader
  • High-flow loaders can place up to 28 cubic yards of concrete per hour
  • Get a Quote
  • Payment Calculator

    • Get information on the Concrete Pump

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Concrete Pump Specs & Compare
Download PDF
Length102.9 in
Concrete Cylinder Diameter6 in
Concrete Cylinder Stroke24 in
Maximum Aggregate Size1.5 in
Maximum Concrete Pressure750 psi
Swing Tube Diameter5 in
Swing Valve Cylinder Diameter3 in
Operating Weight2200 lbs
Swing Valve Cylinder Stroke6 in
Width47.9 in
Pumping Cylinder Diameter3 in
Vertical Pumping Height50 ft
Horizontal Pumping Distance250 ft
Hopper Capacity10 cubic ft
Height54.9 in
Concrete Pump Features & Benefits

Versatility

Dual mounting positions allow the hopper to be placed on the right or left side of the loader.

High-Performance

The pump can place as much as 28 cubic yards of concrete per hour, depending on the loader’s hydraulic flow.

Ease of Use

The pump’s control panel swivels for easier operation.

Remote Control Convenience

With the remote attachment control, operators can start and stop the loader; start, stop and reverse the pump; and turn the high-flow hydraulics on or off from outside the cab.

Adjustable Legs

The pump’s legs can be easily adjusted to quickly accommodate uneven terrain.

Protective Guard Panel

The protective guard panel screens out larger objects from the concrete mix.
