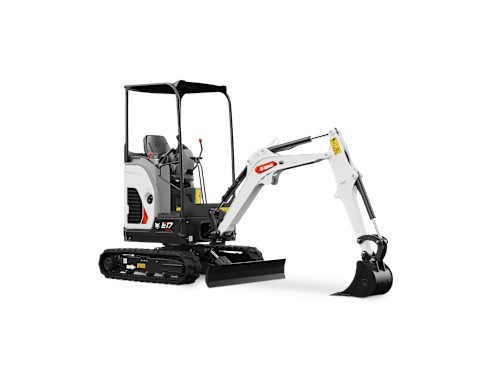

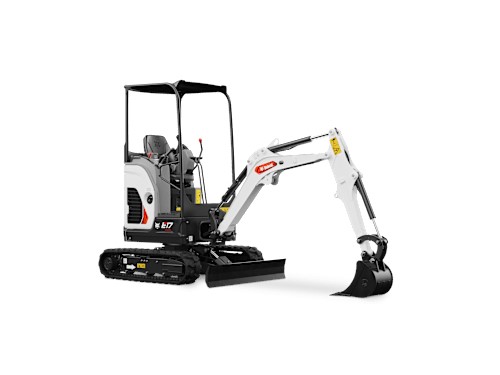

Bobcat E17 - Compact Excavator

Zero Tail Swing excavators give you more unrestricted rotation and provides greater flexibility if you are constantly working close to objects or against a wall. The rear of the house stays within the width of the tracks through full rotation.

Hydraulically retract the undercarriage to just 38.6 inches wide to pass through narrow entries and exits, and gain greater access to jobsites big and small. Then return the undercarriage to its full, 53.5-inch stance for a wider footprint. Operators can also manually fold the outer sections of the dozer blade to reduce its overall width to just 38.6 inches. Fully extended, the blade matches the width of the undercarriage at 53.5 inches wide.

Compared to mechanical travel controls, hydraulically controlled travel on Bobcat compact excavators results in smooth, precise movement.

The new load-sensing pump, paired with the closed-center hydraulic system, delivers smooth and responsive multi-functioning operations and controllability, along with smooth, precise positioning of the excavator and work group. You'll have more power and flexibility for traveling and operating the work group simultaneously for enhanced productivity and more intuitive operation.

The pump makes full use of the engine horsepower for enhanced productivity and machine recovery under load. It improves flow management which results in improved lifting and digging performance and improved overall hydraulic efficiency.

A rocker-style thumb switch, located on the left joystick, provides superior boom swing control with better metering than foot pedals. Multifunctioning actions, such as swinging and traveling simultaneously, are also easier and overall operation is more convenient.

The fingertip auxiliary hydraulic controls make it easy to activate and operate hydraulic attachments.

Standard on the E17, a standard arm gives you maximum breakout force and lifting ability with greater digging performance.

When you dig in an offset position, the swing castings and cylinders remain within the tracks to help you work in small spaces. You can dig flush against an obstacle while avoiding contact with the machine.

When machines without an in-track swing frame work in an offset digging position, their components extend outside the tracks and reduce their ability to dig in tight areas.

The standard dozer blade allows for efficient grading and leveling, clearing away debris and the backfilling of trenches and holes. The blade also helps stabilize the excavator when lifting heavy loads and when working on uneven terrain.

Maneuver faster with the Bobcat Two-Speed option. The quicker you can move on your jobsite, the faster you can complete your work. Select low range for pushing and dozing and high range for increased jobsite mobility.

The low-effort joysticks respond easily to operator input, supporting longer operation with less fatigue. Equipped with fingertip boom swing and auxiliary control, the joysticks provide quick, precise movement.

With the low-noise, low-vibration engine and the load-sensing pump that only provides as much flow as needed for the task, you’ll experience less noise and enjoy a quieter workday.

In dark working conditions, your productivity can still shine. Bright, efficient and reliable standard LEDs provide far-reaching visibility when the light level is low. The adjustable, boom-mounted LED workgroup light also ensures that your lighting is where you need it.

More distance between the tracks and upper structure provides more space for your boots as you step in and out of the machine.

When you’re working after sundown – or any time there are low light levels – the after-shutdown lights illuminate the cab – so you can gather your belongings and exit the machine more easily.

The easy-to-read display panel provides full-featured machine interaction and monitoring capabilities from the cab. Diagnostics and detailed operation information you can access through the display include monitoring, troubleshooting and error conditions. If there’s a problem with the system voltage, engine oil pressure, engine coolant temperature and other major functions, you’ll know. Run your equipment more efficiently and solve more problems in the field with the innovative IQ display. The display also supports multiple languages.

The flat floor enhances overall comfort by giving you more room to place your feet comfortably in the cab.

The easy-access location lets you choose between ISO and standard patterns without leaving the operator’s seat. No keys or special tools are required.

Discover our improved durability features including reinforced and easy-opening covers, top light protection, under-boom lighting, wider clearance between the upper structure and tracks, improved cylinder fittings and long-life tracks - all designed to enhance performance and reduce your maintenance needs.

The boom, arm and attachment/bucket offer better lifting performance and even longer durability than before. Cast pivot joints provide precise pin alignment, which lengthens the service life of pivot pins and bushings.

Improved cylinder fittings ensure maximum performance and better protection against dirt, dust and debris – so you can rely on Bobcat to confidently conquer job after job.

The travel motors are built to withstand your most difficult ground conditions. Their durable design ensures increased uptime and reliable performance.

Additional side channel reinforcement provides enhanced durability.

Work confidently with long-lasting steel lines that are carefully routed to avoid damage. Bobcat steel hydraulic lines offer better protection than rubber hoses. They’re routed through the lower portion of the boom swing casting and tucked securely into the top area of the boom structure, preventing costly damage and protecting component life. Hoses have more steel tubing, well-designed mounts and minimal fittings.

Avoid potential damage and be aware of your machine’s immediate service needs. Bobcat excavators monitor engine and hydraulic functions. If conditions risk damage to the engine or hydraulic components, the system will alert the operator and, if necessary, de-rate engine power as well as hydraulic flow. It still allows the operator to complete the job at hand or move the excavator to an area for diagnosis.

Bobcat electronics meet or exceed IP67 requirements for sealing, moisture, shock and vibration. Work in tough, humid conditions with less worry about corrosion, or power wash your excavator without wondering if it will start when you are finished. Bobcat electronics feature watertight, corrosion-resistant connectors so you won’t slow down from faulty connections.

The lighting circuit automatically shuts down to prevent accidental battery discharge.

Bobcat equipment is designed with transportability in mind. Improved lift-point locations, convenient tie-down points and an automatic slew brake offer hassle-free transport to your next job.

Integrated slew brakes hold your load steady on slopes for more accurate placement. It’s easier to position the excavator, and you no longer need to manually engage the slew brake during transport.

Bobcat compact excavators are designed to make routine maintenance easy. A wide opening gives you more space to work, while a smart layout gives you access to critical components.

Access engine and pump package, cooling system, and plumbing using the swing-open tailgate and side access door. Filters, fluid checks, air cleaner, battery and other maintenance points are simple to access.

When hydraulic fluids move easier, you’ll have more available hydraulic horsepower. That’s why Bobcat compact excavators have fewer 90-degree fittings, resulting in more efficient hydraulic fluid transfer and better utilization of engine horsepower.

There's no need to carry tools to gain access to the side screen for maintenance. The side screen opens wide for convenient access and securely latches without tools.

The counterweight doesn’t interfere with access to engine components, allowing enhanced serviceability.

The standard-equipped auxiliary coupler, conveniently located on the boom, helps keep it clear of the trench when using narrow buckets.

The E17 and E20 are equipped with a robust pin-on attachment system for secure bucket and attachment connections, with the option to upgrade to a mechanical pin grabber coupler for faster and easier attachment changes.

Your excavator is only as productive as the attachments it can power. Bobcat excavator owners get leading jobsite versatility and performance with a wide range of compatible Bobcat attachments.
