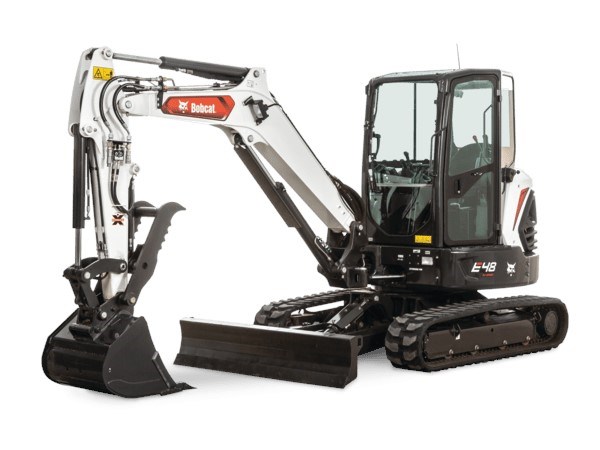

Bobcat E48 - Compact Excavator

Dig with confidence over the side of the machine and experience greater slewing ability thanks to the dual flange track rollers. Operators will also notice smoother, more comfortable ride quality while moving across bumpy jobsites.

With the angle blade, you can configure your compact excavator’s blade to the left or right up to 25 degrees to find the best position for your work. Left and right adjustments help you backfill and grade faster. Downward adjustments, available on some models, stabilize your excavator when digging on an uneven surface or trenching at an angle.

The integrated lift eye, standard on R2-Series excavators, gives you a convenient method for handling objects or moving items in and out of the trench.

Redesigned for reduced and simplified routine maintenance, the Bobcat® engine on R2-Series excavators delivers the performance you expect. The innovative fuel system, which is more forgiving when fuel levels are low, keeps you working longer. Improved cold-weather operation keeps you productive.

Achieve an accurate grade every time without leaving your cab by using the Bobcat® depth check system. Efficient and easy to use, the system delivers accurate dig depth measurement for precise digging performance. It eliminates over-digging and the costs associated with backfilling and compacting fill material. It also prevents under-digging and the resulting need for manual labor to finalize depth or grade.

Simplify grading and leveling. Blade float exerts a minimal, consistent down-force on the blade, with minimal operator input.

If your jobs often require an excavator with greater reach, choose a Bobcat compact excavator with the extendable-arm option. When needed, the arm can be hydraulically extended up to 30 inches and then retracted to its standard position for maximum arm force and lift performance.

Low-effort joysticks in R2-Series excavators respond easily to operator input, helping operators work longer with less fatigue. They’re equipped with fingertip boom swing and auxiliary control, providing quick, precise movement with low effort.

Experience full-featured machine interaction and monitoring capabilities from inside the cab with the easy-to-read display. Standard on R2-Series excavators, the detailed full-color display provides access to diagnostic and operation information, allowing you to operate your compact excavator more efficiently and solve problems in the field. 

Your work doesn’t stop until the job is done. Early in the morning or late at night, illuminate poorly lit jobsites with bright, efficient and reliable LED lights – standard on select compact excavators.

The optional high-back seat with headrest keeps you comfortable and supported during long hours on the job. In cold conditions, the heated seat connects to the machine’s automatic temperature control to keep you warm and productive.

Get on and off the jobsite faster. Secure your load quickly, without searching for hard-to-reach tie-downs.

Get a better view of your jobsite with the optional rear camera on R2-series excavators. It offers a continuous rear view from the operator’s seat, providing an additional viewpoint to the working area in some applications.

The camera is mounted high and out of the way to prevent contact with obstacles and debris. A protective structure further ensures rear display reliability.

Larger fuel filters in R2-Series excavators provide better system protection and longer life before replacement. With more than double the media surface area, it has more holding capacity to capture impurities for longer intervals. The filter is also easier to change and includes a clear water bowl for easy monitoring and a sensor to notify you when draining is needed.

The recommended engine oil service interval has increased from 500 to 750 hours, giving you more uptime per oil change.
