FP1540
FP1540 FP1540 FP1540 FP1540

FP15.40

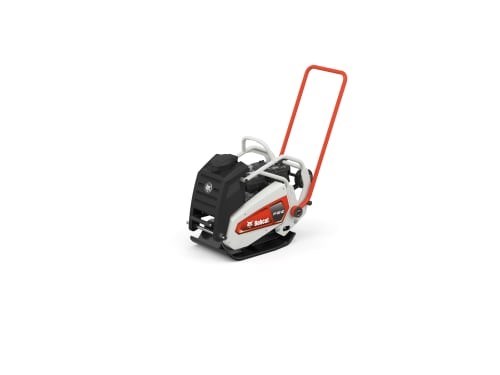

The versatile FP15.40 forward vibratory plate compactor achieves optimal compaction results on a variety of granular materials including sand, gravel and hot-mix asphalt.

  • Reliable Honda engine
  • Easy transport with optional, toolless wheels
  • Industry-leading forward movement
  • Standard water tank and sprayer kit
Special Offers

As low as 0% for 24 months* or rebates up to $100 USD* / $150 CAD* in lieu of financing. Offers end December 31, 2025.

  • Get a Quote Payment Calculator

    • Get information on the FP15.40

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

FP15.40 Overview
  • Put this Bobcat forward vibratory plate compactor to work in a wide range of applications, including base compaction within trenches or surface material compaction.
  • The FP15.40 forward plate compactor is equipped with a durable and efficient Honda engine that provides easy starts and maximum power while minimizing fuel consumption.
  • Quickly attach the optional, toolless mat to operate the plate compactor on paving stones without cracking or chipping the surface.
  • Designed to isolate plate vibrations from the operator’s handle, Bobcat forward plate compactors minimize hand-arm vibration and fatigue.
  • Control dust or keep the vibratory base plate free of hot asphalt buildup with the standard water tank and sprinkler system.
FP15.40 Specs & Compare
Download PDF
FP15.40 Key Specifications
FP15.40
Engine ModelGX 120
Horsepower3.5 hp
Operating Weight176 lbs
Centrifugal Force3372 lbf
Length27.6 in
Width15.7 in
Height26.3 in
Engine
FP15.40
Engine ModelGX 120
Horsepower3.5 hp
Performance
FP15.40
Operating Weight176 lbs
Travel Speed1 mph
Centrifugal Force3372 lbf
Dimensions
FP15.40
Length27.6 in
Max Incline20 deg
Ground Contact Length13.9 in
Gradeability3000 %
Width15.7 in
Height26.3 in
Compaction Forces
FP15.40
Hand8.2 ft/sec
Surface Capacity6975 square feet/hour
Surface Pressure15.5 psi
Centrifugal Force3372 lbf
FP15.40 Features & Benefits

Performance

Industry-Leading Forward Design

Bobcat forward plate compactors offer industry-leading forward movement, great compaction results and less operator fatigue.

Reliable Engine Performance

Equipped with a durable and efficient Honda engine, the FP15.40 forward plate compactor delivers reliable starts, maximum power and low fuel consumption.

High-Compaction Performance

The FP15.40 features a 22-inch base plate that delivers maximum compaction force of 3,372 lbf. (50,000 N).

High Maneuverability

The compact size and high maneuverability make Bobcat forward plate compactors ideal for compaction work in tight-fitting areas.

Comfort

Minimized Hand-Arm Vibration

Bobcat forward plate compactors are designed to isolate plate vibrations from the operator’s handle, significantly reducing hand-arm vibration and fatigue. The handle also folds for convenient transport and storage.

Convenient Lift Bar

Easily lift and load the forward plate compactor to and from the jobsite using the convenient, central-point lift bar.

Easy Transport

Moving a Bobcat forward plate compactor from one jobsite to another is easy with the optional, toolless transport wheels and central lift bar.

Uptime Protection

Durable Frame

A robust, tubular frame surrounds the engine and durable covers protect key components for reliable performance on the jobsite day after day.

Casted, One-Piece Plate

Bobcat forward plate compactors feature a one-piece, cast base plate with no connection points that can weaken over time. Other brands weld or assemble components for their base plates. Bobcat forward plate compactors also feature base plates that are thicker in the rear, where most wear occurs.

Material-Shedding Base Plate

Bobcat forward plate compactors feature base plates that are designed to shed dirt and reduce material buildup for greater operator uptime.

Serviceability

Easy Maintenance

Easy access to service points makes maintenance easy and increases your uptime.

Wear-Resistant Base Plate

Bobcat forward plate compactors are equipped with wear-resistant base plates that are thicker in the rear, where most wear occurs. This means the forward plate compactor, operated under typical working conditions, requires no base plate service during their lifetime.

Optional Hour Meter

An optional vibration-activated hour meter monitors work hours to ensure timely maintenance.

Versatility

Optimum Versatility

Tackle a wide range of applications, including open-area compaction work, trench work and compacting materials in tight spaces.

Standard Water Tank and Sprinkler System

Control dust or keep the vibratory base plate free of material buildup while compacting asphalt using the standard water tank and sprinkler system. The durable, yet light-weight tank can be removed without the need for tools for convenient refills.

Optional Toolless Rubber Mat

Slip on the optional rubber mat to operate the plate compactor on paving stones without cracking or chipping the stones or other expensive surfaces.
